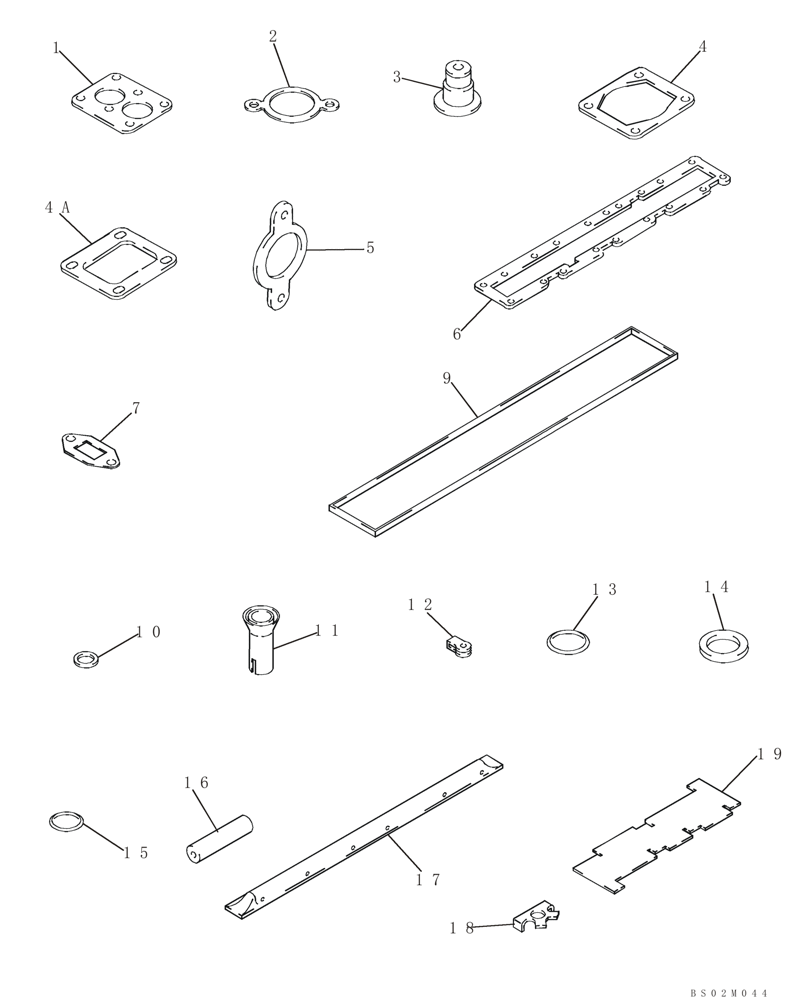

Запчасти Case 821C (02-24) - GASKET KIT (Mar 7 2011 3:15PM) (02) - ENGINE

REF

INSTRUCTION

6TAA-830 EMISSIONS CERTIFIED ENGINE

1шт.

REF

INSTRUCTION

VALVE GRIND

1шт.

A78042

KIT

Incl. 1 - 3A, 4A -7, 9 - 19

1шт.

1

J914310

GASKET,0.8mm Thk

See Figure 02-16

1шт.

2

J918779

GASKET,1.19mm Thk

See Figure 02-16

1шт.

3

J927642

SEAL

See Figure 02-18

6-12шт.

4

J755843

GASKET,0.5mm Thk

See Figure 02-10, REF 2

12шт.

5

J929012

GASKET,0.5mm Thk

See Figure 02-10

6шт.

6

J936993

MANIFOLD GASKET,0.76mm Thk

See Figure 02-10

1шт.

7

J937706

GASKET,0.79mm Thk

See Figure 02-10

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

See Figure 02-15

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

See Figure 02-15

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

See Figure 03-05

6шт.

12

J903380

SEAL

See Figure 03-09

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Not Used In This Application

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm; See Figure 03-09

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

See Figure 02-16

1шт.

16

J930827

HOSE,51.00 mm

Not Used In This Application

1шт.

17

J919677

TUBE

See Figure 02-18

1шт.

18

J914708

LOCKING PLATE

See Figure 02-10

12шт.

19

87404692

GAUGE

1шт.
