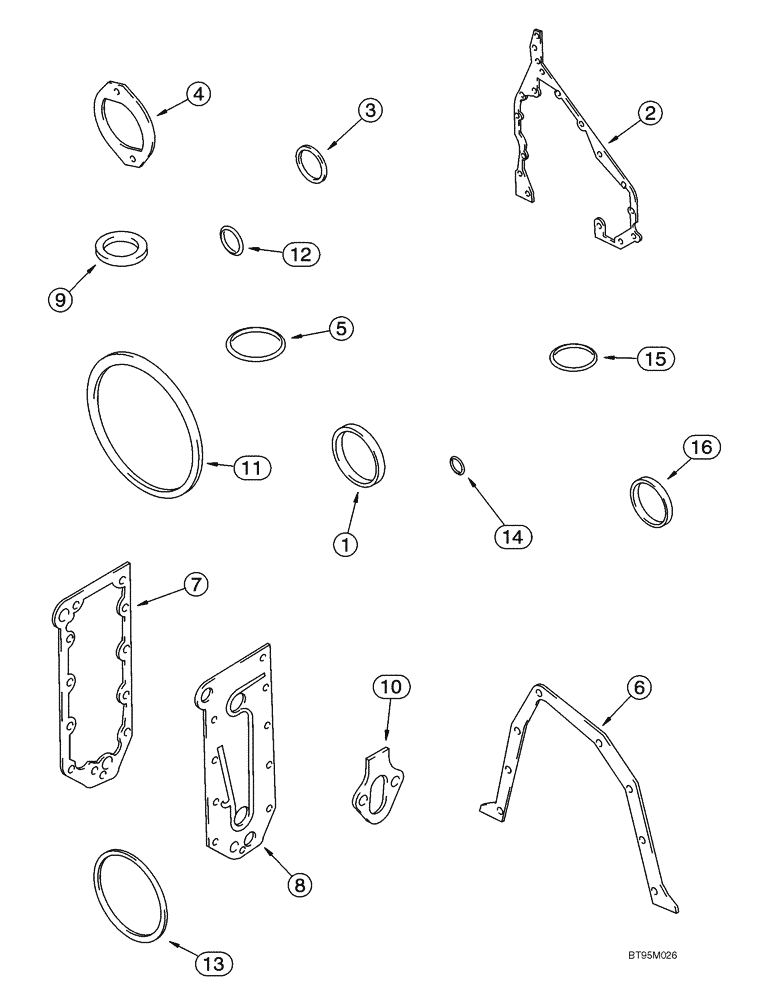

Запчасти Case 821C (02-24) - GASKET KIT (Jul 21 2006 10:41AM) (02) - ENGINE

REF

INSTRUCTION

6TAA-830 EMISSIONS CERTIFIED ENGINE

1шт.

REF

INSTRUCTION

CYLINDER BLOCK

1шт.

A77855

KIT

Incl. 1 - 16

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-09

1шт.

2

J938737

GASKET

Not Used In This Application; See Figure 02-09, REF 7

1шт.

2a

J938156

GASKET,0.79mm Thk

Not Used In This Application; Not Illustrated

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure 02-09

1шт.

4

J938655

GASKET,1.27mm Thk

See Figure 02-09

1шт.

5

J902089

SEAL,0.139" Thk x 3.859" ID, -241

Not Used In This Application; See Figure 02-8, REF 3

1шт.

6

J914301

GASKET

See Figure 02-21

1шт.

7

J918174

GASKET,0.71mm Thk

See Figure 02-13

1шт.

8

J929011

GASKET,1.19mm Thk

Not Used In This Application; See Figure 02-13, REF 18

1шт.

9

J901798

SEALING WASHER

Not Used In This Application

1шт.

10

J939258

GASKET,1.21mm Thk

See Figure 03-07

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-22

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

See Figure 02-22

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

See Figure 02-20

6шт.

14

J913994

O-RING

See Figure 02-09

1шт.

15

J916284

O-RING

Not Used In This Application; See Figure 03-08, REF 19

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

See Figure 03-08

1шт.
