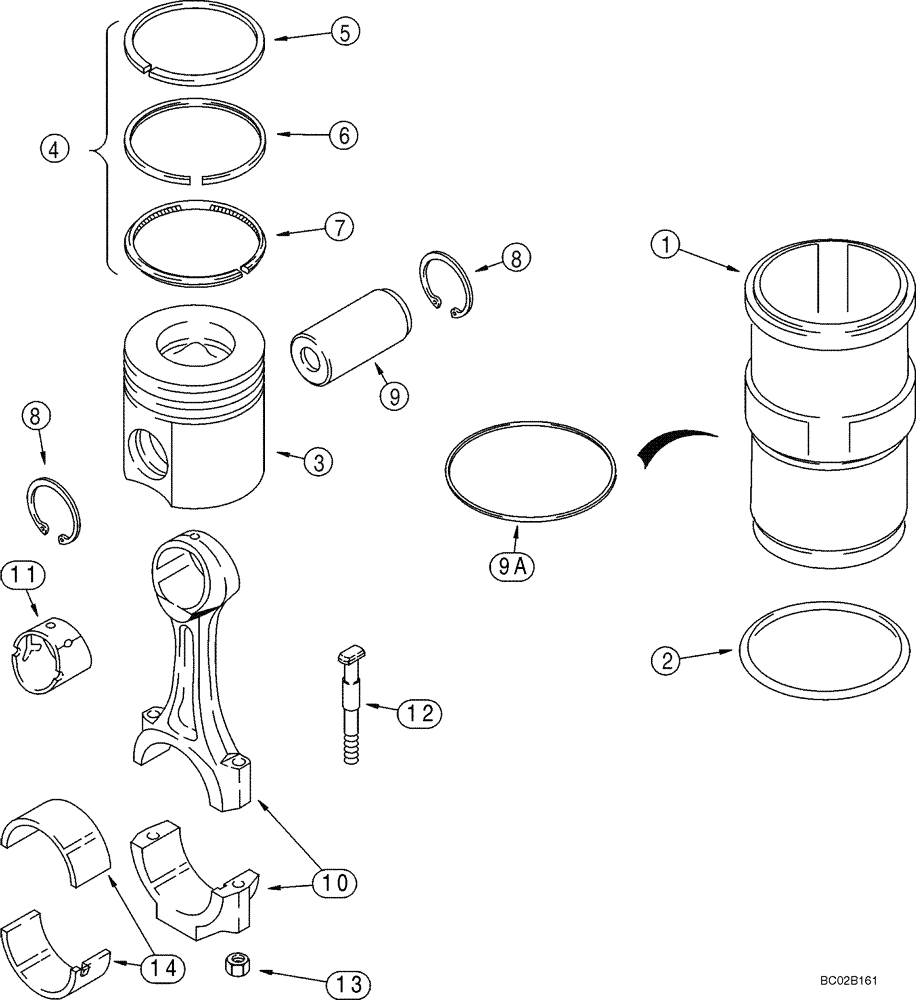

Запчасти Case 821C (02-23) - PISTONS - CONNECTING RODS (02) - ENGINE

REF

INSTRUCTION

6TAA-830 EMISSIONS CERTIFIED ENGINE

1шт.

A78038

KIT

Piston and Sleeve; Incl. 1 - 8

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

J802263

PISTON & RINGS KIT

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

J802429

PISTON RINGS KIT

Standard; Incl. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

8

100-21175

SNAP RING,1.75", Int, #175

2шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

REF

INSTRUCTION

CONNECTING ROD

1шт.

84145656

CONNECTING ROD

Incl. 10 - 13; Replaces J901383

6шт.

84145656R

REMAN-CONNECTING ROD

Remanufactured, Replaces JR901383

6шт.

84145656C

CORE-ROD CONNECTING

Return Part Number, Core Connecting Rod Use To Return Core For Credit When Using a Remanufactured Assembly; Replaces JC901383

6шт.

84487529R

REMAN-CONNECTING ROD

821C S/N JEE0155001 & AFTER, Reman for New P/N 84145656

6шт.

84487529C

CORE-ROD CONNECTING

Return Part Number

6шт.

10

NSS

NOT SOLD SEPARAT

Rod

1шт.

11

87343250

BUSHING,45.03mm ID x 49mm OD x 43mm L

Replaces J913990

1шт.

12

J928870

ROD

2шт.

13

J934864

NUT

2шт.

14

A77563

BEARING SET

Standard

6шт.

14

87443389

BEARING LINER

Standard; Replaces A77563

6шт.

14

A77564

BEARING SET

Undersize 0,25 mm

6шт.

14

87443529

BEARING LINER

Undersize 0,25 mm; Replaces A77564

6шт.

14

84156219

BEARING LINER

Undersize 0,25 mm; Replaces 87443529

6шт.

14

A77565

BEARING SET

Undersize 0,50 mm

6шт.

14

87443532

BEARING LINER

Undersize 0,50 mm; Replaces A77565

6шт.

14

84156220

BEARING SET

Undersize 0,50 mm; Replaces 87443532

6шт.

14

A77566

BEARING SET

Undersize 0,75 mm

6шт.

14

87443533

BEARING LINER

Undersize 0,75 mm; Replaces A77566

6шт.

14

84156221

BEARING SET

Undersize 0,75 mm; Replaces 87443533

6шт.

14

A77567

BEARING SET

Undersize 1,00 mm

6шт.

14

87443534

BEARING LINER

Undersize 1,00 mm; Replaces A77567

6шт.

14

84156222

BEARING SET

Undersize 1,00 mm; Replaces 87443534

6шт.
