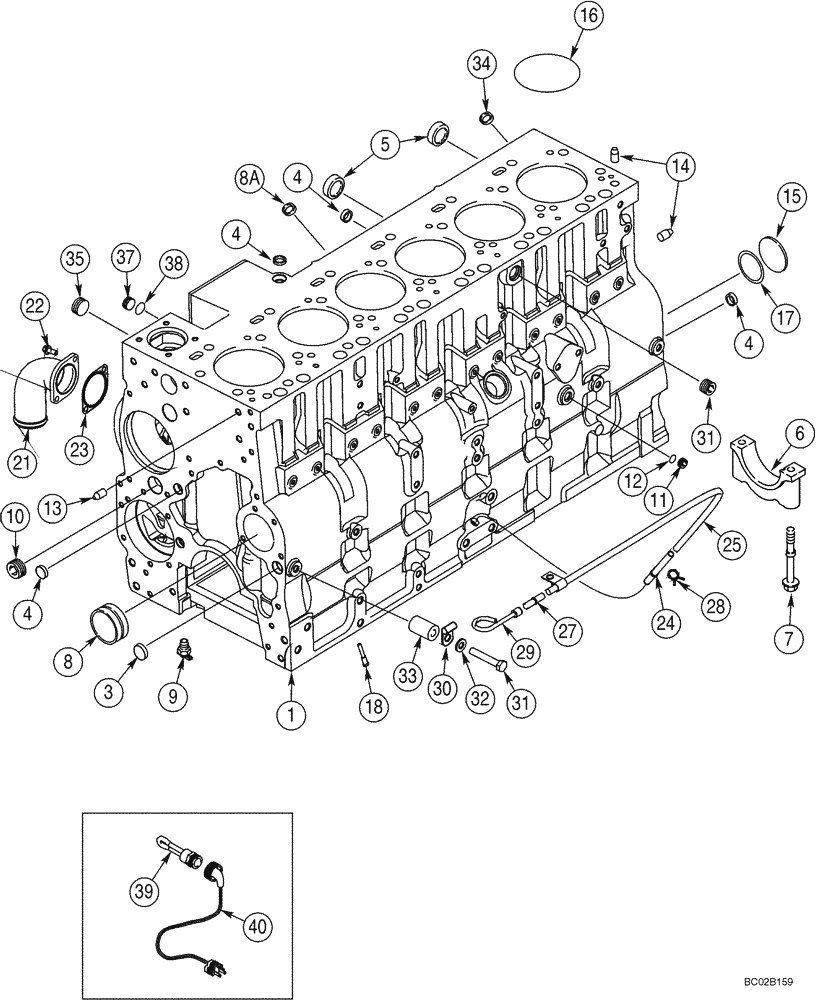

Запчасти Case 821C (02-20) - CYLINDER BLOCK (02) - ENGINE

REF

INSTRUCTION

6TAA-830 EMISSIONS CERTIFIED ENGINE

1шт.

376301A3

ENGINE

Complete; Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe; Replaces 376301A1

1шт.

376301A3C

CORE-EPA ENGINE

Return Number

1шт.

450560A1

BASIC ENGINE

Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Inj. Pump, Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger; See Note

1шт.

450560A1R

REMAN-BASIC ENGINE

Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Inj. Pump, Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger; See Note

1шт.

450560A1C

CORE-BASIC ENGINE

Return Number

1шт.

A78041

CYLINDER BLOCK

Short; Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings; Incl. 1 - 8

1шт.

1

84301694

SERVICE KIT

Cylinder Block, Stripped, Inc. 87444569 Kit, Cylinder Block Hardware

1шт.

3

A77586

PLUG

28.9 mm

2шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

J936058

BEARING CAP

7шт.

7

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

See Figure 02-19, REF 6

7шт.

8a

J920706

PLUG

22 mm

1шт.

449019A1

PACKAGE,SERVICE

Includes 9 - 20

1шт.

9

217-103

COCK, DRAIN

1/4 PT

1шт.

10

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1 PT

1шт.

11

J678923

PLUG,M10 x 1

10 mm; Incl. 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

19

J678921

PLUG

14 mm; Incl. 20; One Used In This Application; Not Illustrated

2шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

21

J944141

CONNECTION

Water Inlet

1шт.

22

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

23

J945603

GASKET,1.65mm Thk

1шт.

24

A77645

TUBE

1шт.

24

87366160

TUBE,.375" OD

Dipstick; Replaces A77645

1шт.

25

J285703

TUBE,12 mm OD x 787.5 mm L

1шт.

26

A77508

CLAMP

7/16 ID; Not Used In This Application

1шт.

27

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

28

86637701

HOSE CLAMP,12.45mm - 12.95mm

1/2; Replaces 214-1308

1шт.

29

J945613

DIPSTICK

1шт.

30

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Not Included In Engine Assembly; Purchase Separately

1шт.

31

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

Not Included In Engine Assembly; Purchase Separately

1шт.

32

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Not Included In Engine Assembly; Purchase Separately

1шт.

33

90-7181T1

SPACER

Not Included In Engine Assembly; Purchase Separately

1шт.

34

J943808

PLUG

22 mm

1шт.

35

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

36

J905401

PLUG

35 mm

1шт.

37

313244A1

PLUG

22 mm; Incl. 38

2шт.

38

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2,2 mm

1шт.

REF

INSTRUCTION

ENGINE BLOCK HEATER

1шт.

310494A1

KIT

240V/1000W; Europe Only; Incl. 39, 40

1шт.

310493A1

KIT

120V; Incl. 39, 40

1шт.

39

NSS

NOT SOLD SEPARAT

Element

1шт.

40

J913112

WIRE HARNESS

305 mm (12") Europe Only

1шт.

40

196466A1

ELECTRIC CABLE

1шт.

REF

INSTRUCTION

REPAIR KIT

1шт.

A78039

ENGINE OVERHAUL KIT

Engine Block; Not Illustrated; Incl. 41 - 48

1шт.

41

A78038

KIT

See Figure 02-23

6шт.

42

A77563

BEARING SET

See Figure 02-23

6шт.

43

J934046

PISTON PIN,45mm OD x 91mm L

See Figure 02-23

6шт.

44

J945930

BEARING SET

See Figure 02-21

6шт.

45

J945929

THRUST BEARING

See Figure 02-21

1шт.

46

A78018

GASKET KIT

Not Used In This Application

1шт.

47

J943366

CYLINDER HEAD GASKET,2.11mm Thk

Not Used In This Application

1шт.

48

A77999

GASKET KIT

See Figure 02-14

1шт.

48

87308050

GASKET,0.95mm Thk

Replaces A77999

1шт.
