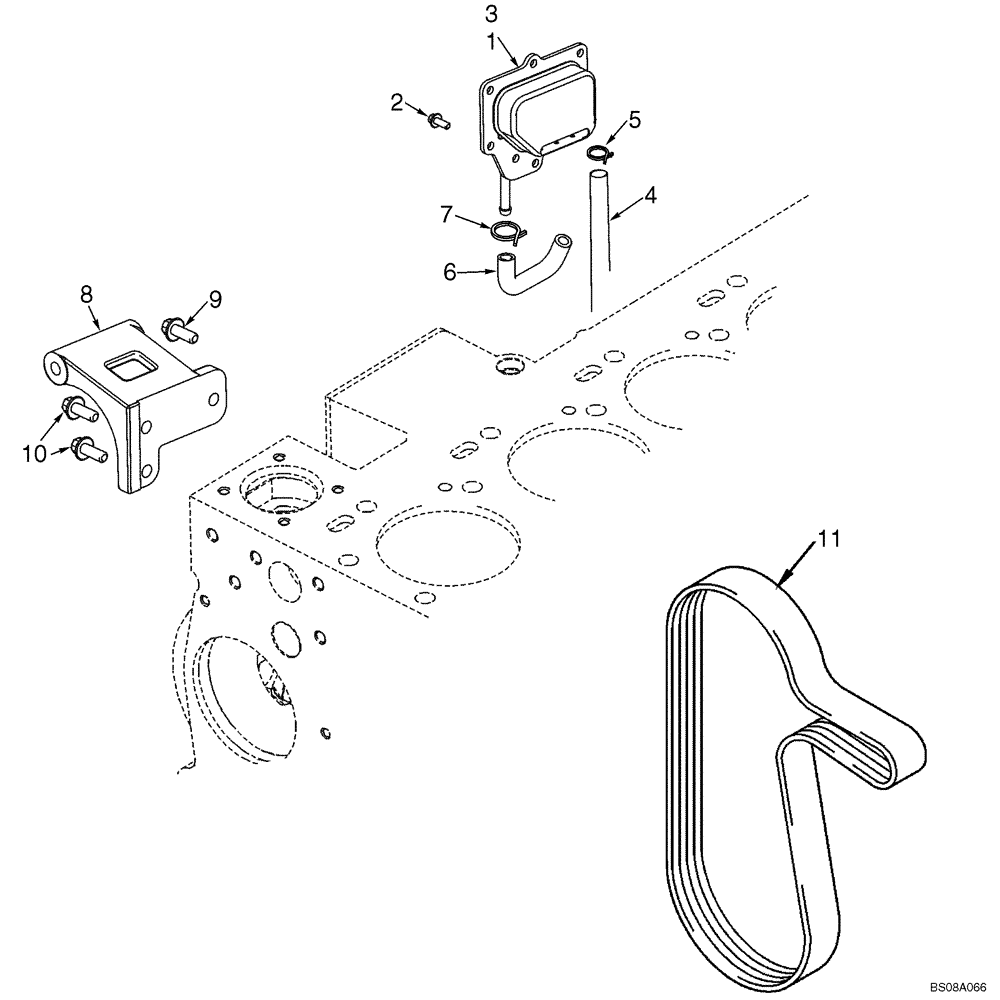

Запчасти Case 821C (02-17) - CRANKCASE, BREATHER - ALTERNATOR MOUNTING (02) - ENGINE

REF

INSTRUCTION

6TAA-830 EMISSIONS CERTIFIED ENGINE

1шт.

1

J937652

BREATHER

1шт.

2

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

3

J944683

GASKET

1шт.

4

J944714

TUBE,320.00 mm

1шт.

5

214-1310

HOSE CLAMP,#10, 5/8", Spring

2шт.

6

J948068

HOSE,66.50 mm, SAE 30R7

Molded

1шт.

7

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

1шт.

8

J944311

SUPPORT

1шт.

9

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

10

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

11

J926848

BELT

Alternator

1шт.
