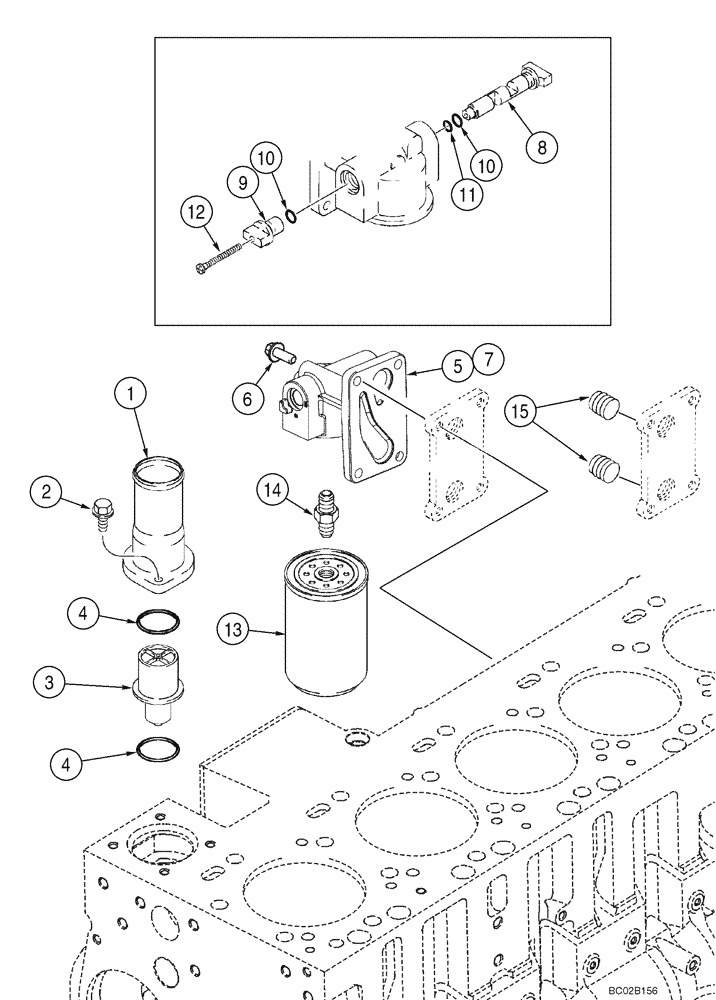

Запчасти Case 821C (02-16) - THERMOSTAT - FILTER, WATER (02) - ENGINE

REF

INSTRUCTION

6TAA-830 EMISSIONS CERTIFIED ENGINE

1шт.

1

J940631

OUTLET

1шт.

2

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

3

J940632

THERMOSTAT

Incl. 4, Replaced By 87579684 Used On Some Models

1шт.

3a

87698668

THERMOSTAT

Incl. 4A, Replaces 87579684, J940632

1шт.

4

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

4a

87579687

SEAL

1шт.

5

J943738

FILTER HEAD

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

7

87612306

GASKET,1.15mm Thk

Replaces Gasket J937367

1шт.

8

J943739

SHUT-OFF VALVE

1шт.

9

J943740

SHUT-OFF VALVE

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

11

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

12

J944454

SELF-TAP SCREW,#6 - 20 x 1 3/8"

1шт.

13

J100304

FILTER

1шт.

14

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

1шт.

15

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

2шт.
