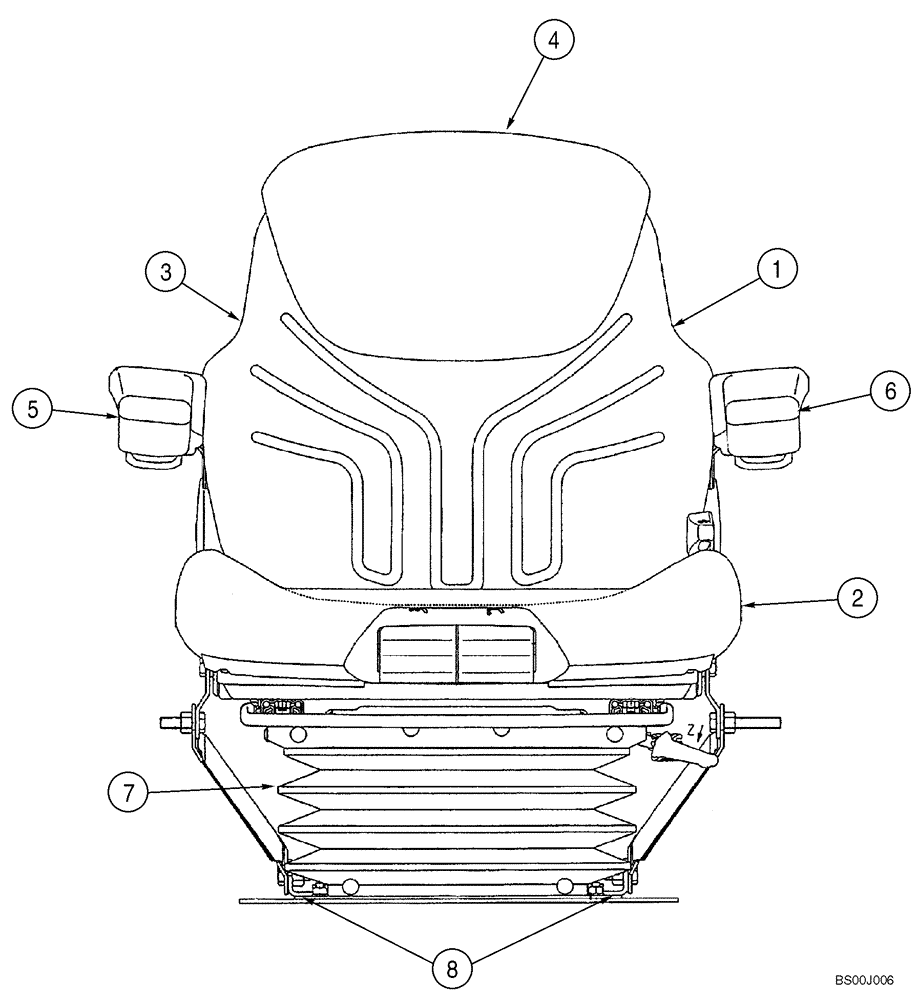

Запчасти Case 821C (09-28) - SEAT ASSY, AIR SUSPENSION (09) - CHASSIS

*

399259A1

DRIVER SEAT

Cloth, Air Suspension, Incl 1 - 27

1шт.

1

406866A1

CUSHION

See Figure 09-26, REF 1, 2

1шт.

2

87344451

CUSHION, SEAT

Cloth; Replaces 406867A1, See Figure 09-26, REF 3, 4

1шт.

3

345764A1

BACKREST

See Figure 09-26, REF 5-7

1шт.

4

345727A1

SEAT HEADREST

1шт.

5

398152A1

ARMREST

RH

1шт.

6

398151A1

ARMREST

LH

1шт.

7

398149A1

COVER

1шт.

8

345783A1

RAIL ASSY.

Seat Slide Rails, See Figure 09-26, REF 45

1шт.

9

345767A1

SUPPORT

Lumbar, Not Illustrated, See Figure 09-26, REF 31-40

1шт.

10

345747A1

FRAME

Not Illustrated, See Figure 09-26, REF 41-41B

1шт.

11

345785A1

KIT

Tether Belt, Not Illustrated, See Figure 09-26, REF 44

1шт.

12

345778A1

REPAIR KIT

Hardware, Backrest Adjustment, Not Illustrated, See Figure 09-26, REF 9-19

1шт.

13

300521A1

REPAIR KIT

Not Illustrated

1шт.

14

345109A1

KIT

Arm, Not Illustrated

1шт.

15

345131A1

STOP

Not Illustrated

1шт.

16

345114A1

REPAIR KIT

Upper Suspension; Not Illustrated, Air Spring

1шт.

16

87396297

REPAIR KIT

Kit; Upper Suspension; Not Illustrated; Replaces 345114A1, See 87560418 Drawing

1шт.

17

345125A1

AIR COMPRESSOR KIT

Compressor, Not Illustrated

1шт.

18

398142A1

LEVER

Not Illustrated

1шт.

19

254782A1

KIT

Air Hose, Incl 20 - 21, Not Illustrated

1шт.

20

3225292R1

PLUG

12шт.

21

60-4895T1

CLAMP

2шт.

22

398150A1

SHOCK ABSORBER

Not Illustrated

1шт.

23

398148A1

BASE

Not Illustrated

1шт.

24

398143A1

CABLE

Not Illustrated

1шт.

25

398146A1

CABLE

Not Illustrated

1шт.

26

398546A1

SUSPENSION

Upper, Not Illustrated

1шт.

27

398147A1

SUSPENSION

24V, Not Illustrated

1шт.
