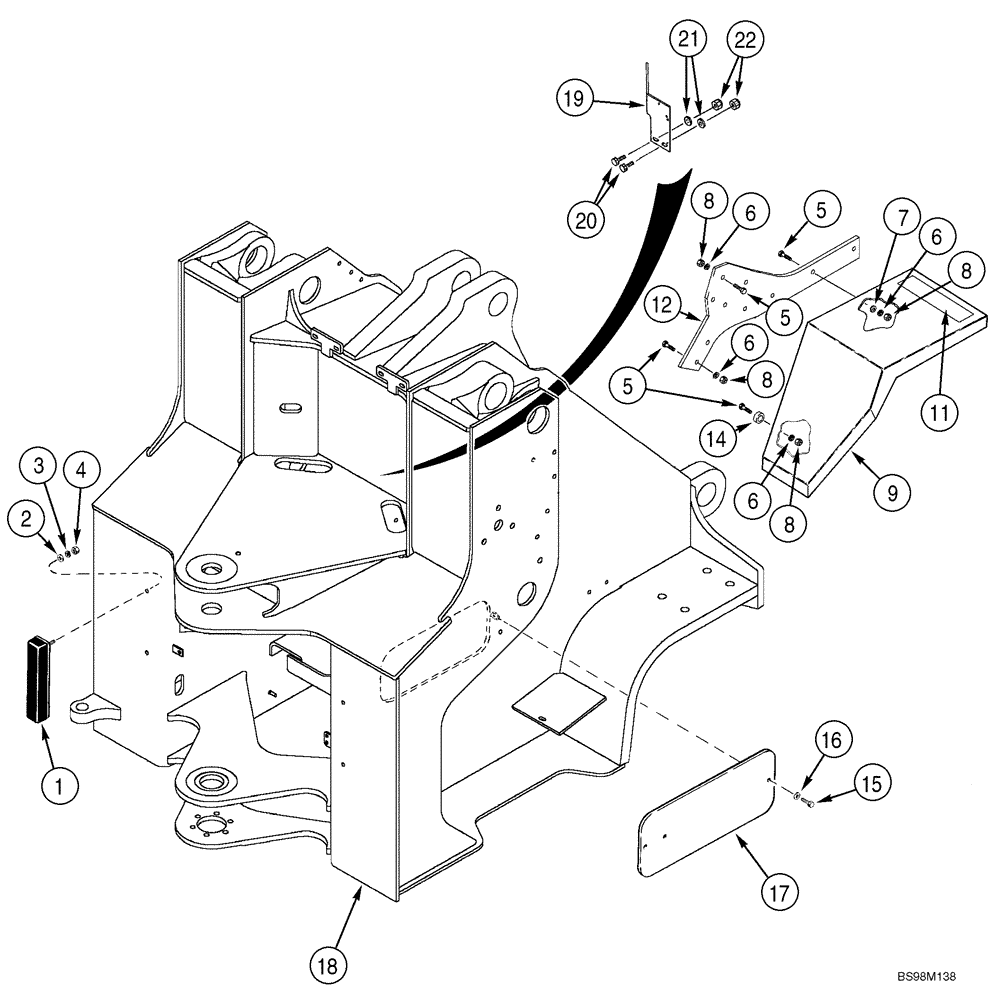

Запчасти Case 821C (09-24) - FRAME, FRONT - FENDERS (Mar 11 2010 9:50AM) (09) - CHASSIS

EUROPE ONLY

1шт.

1

L108504

BUMPER

2шт.

Chassis

1шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

16шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

16шт.

9

341126A1

FENDER

1шт.

Front

1шт.

Right Hand

1шт.

10

341127A1

FENDER

1шт.

Front

1шт.

Left Hand

1шт.

Not Illustrated

1шт.

11

D55216

PAD,2" x 9"

2 x 9 in

1шт.

Anti Skid

1шт.

Front Fender

1шт.

12

123640A1

LARGE PLATE

PLATE, LARGE

1шт.

Fender

1шт.

Right Hand

1шт.

13

123641A1

LARGE PLATE

PLATE, LARGE

1шт.

Fender

1шт.

Left Hand

1шт.

Not Illustrated

1шт.

14

123675A1

SPACER

2шт.

Fender

1шт.

15

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

17

L125240

LARGE PLATE

PLATE, LARGE

2шт.

Front Frame

1шт.

18

319628A1

CHASSIS

1шт.

Front Chassis

1шт.

19

304980A1

BRACKET

1шт.

Tube Support

1шт.

20

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

21

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

22

231-1446

NUT,3/8" - 16, Gr 5

2шт.
