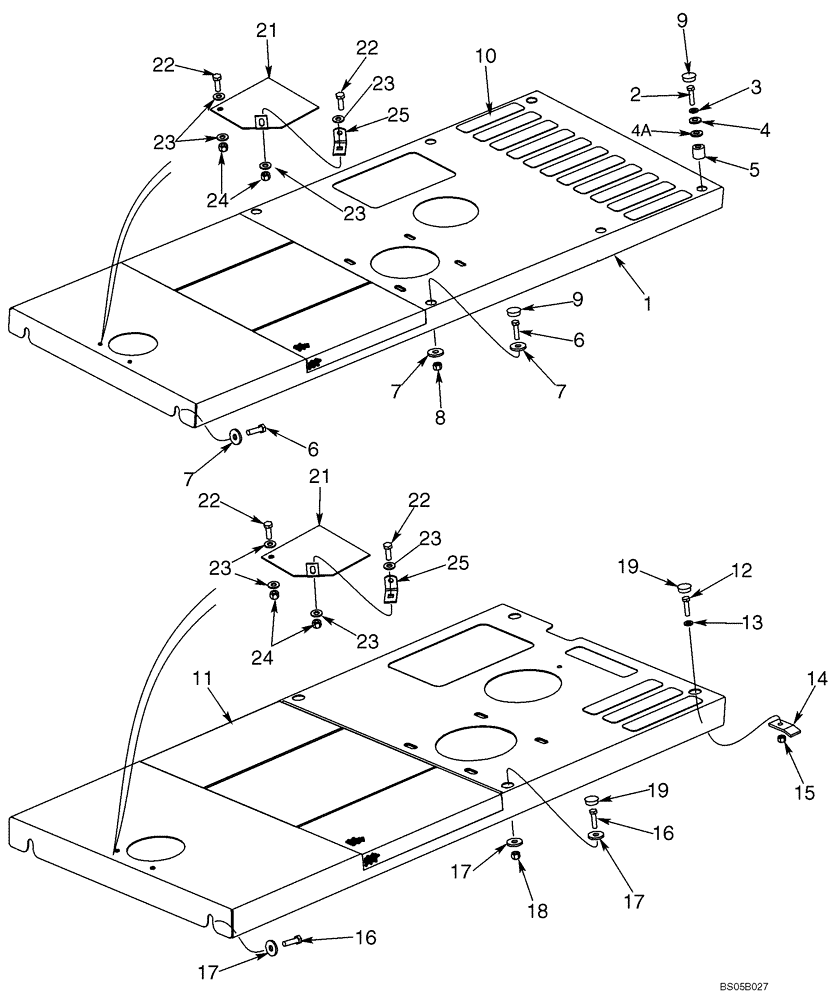

Запчасти Case 821C (09-13) - HOOD, ENGINE (09) - CHASSIS

MODELS WITHOUT AIR CONDITIONING

1шт.

1

436271A3

HOOD

1шт.

2

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

3

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

4

492-11062

BEARING WASHER,5/8"

4шт.

4a

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

M10

4шт.

5

D76208

SPACER

4шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

7

195-81030

WASHER

17/32 x 1-1/2 x 3/16

6шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

9

353-422

PLUG,Dome, 1.250" hole, Nylon

6шт.

10

D55216

PAD,2" x 9"

2 x 9 in

11шт.

Anti Skid

1шт.

Front

1шт.

MODELS WITH AIR CONDITIONING

1шт.

11

431943A2

HOOD ASSY.

1шт.

12

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

14

L125787

LARGE PLATE

PLATE, LARGE

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

17

195-81030

WASHER

17/32 x 1-1/2 x 3/16

6шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

19

353-413

PLUG,Dome, 1.187" hole, Nylon

1-3/16

4шт.

ALL MODELS

1шт.

21

L126779

LARGE PLATE

PLATE, LARGE

1шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

5шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

25

L112314

SUPPORT

1шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
