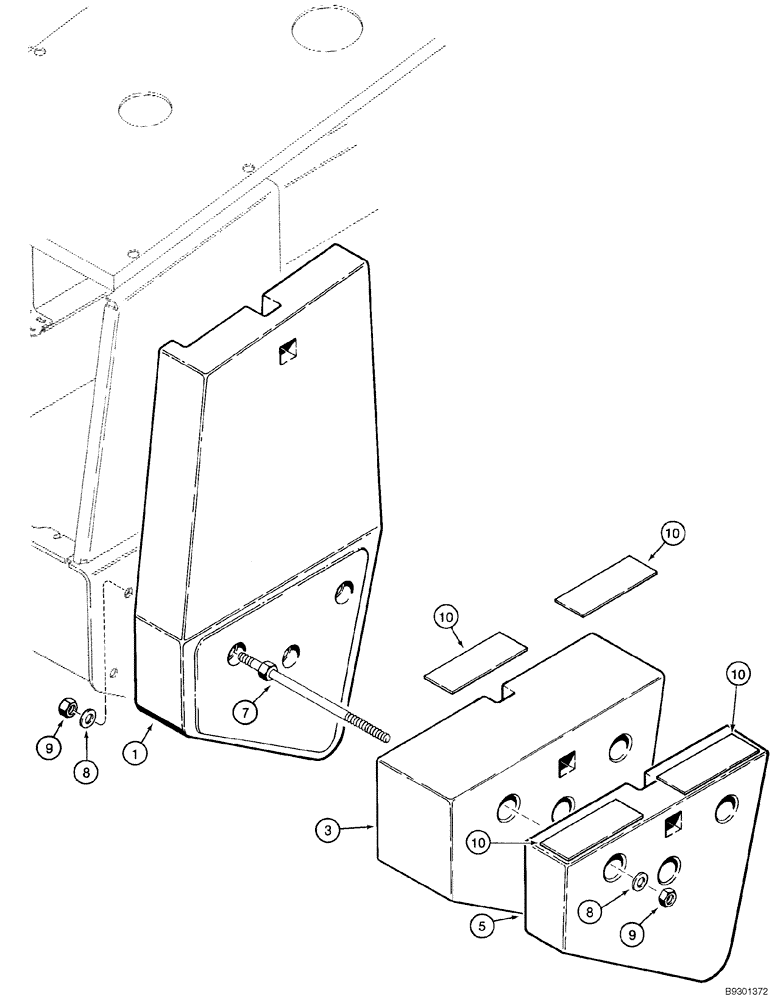

Запчасти Case 821C (09-10) - COUNTERWEIGHTS (Dec 22 2009 3:29PM) (09) - CHASSIS

NORTH AMERICAN MODELS

1шт.

POUND TOTAL WEIGHT : 5400

1шт.

1

L125464

BALANCER

545.5 kg (1200 lb); Rear; Right Hand

1шт.

2

L125465

BALANCER

545.5 kg (1200 lb); Rear; Left Hand; Not Illustrated

1шт.

3

L125466

BALANCER

453.6 kg (1000 lb); Rear; Right Hand

1шт.

4

L125467

BALANCER

453.6 kg (1000 lb); Rear; Left Hand; Not Illustrated

1шт.

5

L125468

BALANCER

226.8 kg (500 lb); Right Hand; Rear; No Longer Available

1шт.

6

L125469

BALANCER

226.8 kg (500 lb); Rear; Left Hand; Not Illustrated; No Longer Available

1шт.

7

L129899

STUD

6шт.

8

496-21106

WASHER,1 1/16" x 2" x .209", HDN

12шт.

9

429-1016

NUT,1"-8, G8

12шт.

10

S243101

WEAR PAD

4 x 11 in; Non-Skid

8шт.
