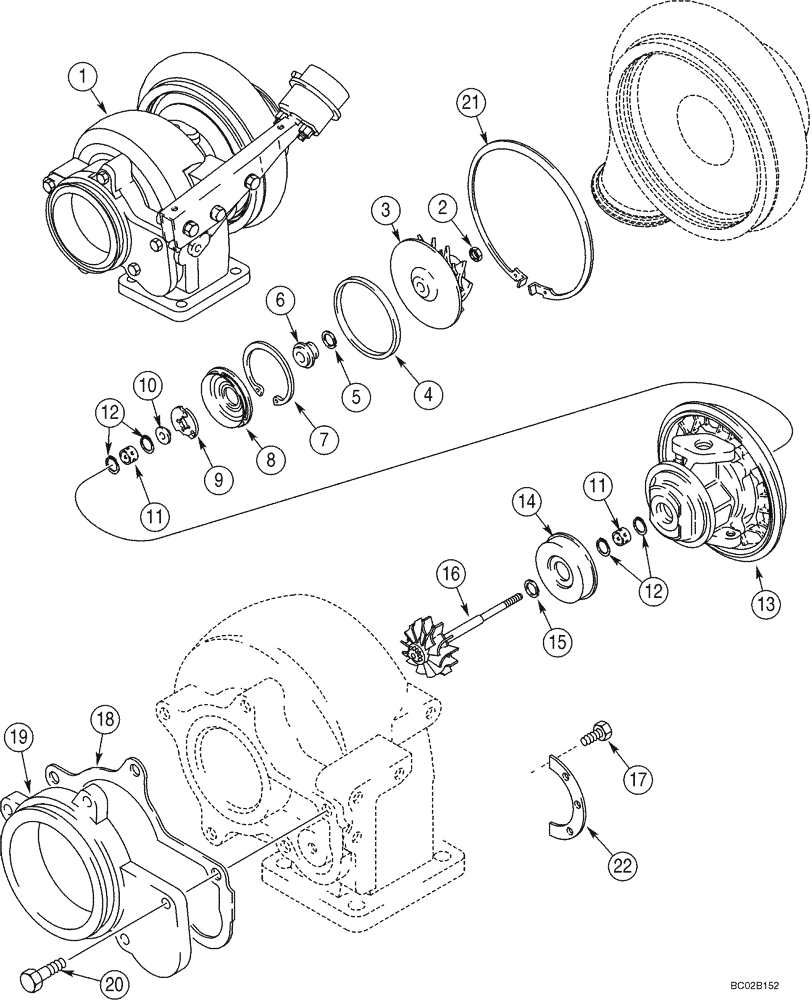

Запчасти Case 821C (02-11) - TURBOCHARGER ASSY (02) - ENGINE

REF

INSTRUCTION

6TAA-830 EMISSIONS CERTIFIED ENGINE

1шт.

1

A78040

TURBOCHARGER

Turbocharger; Incl. 2 - 22; Also Incl. Figure 02-12, REF 1 - 12

1шт.

A78040R

REMAN-TURBOCHARGER

821C (S/N JEE0155001 & AFTER)

1шт.

A78040C

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

J575169

REPAIR KIT

Overhaul; Incl. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

J503533

BOLT

M8 x 20

5шт.

21

J533163

SNAP RING

1шт.

22

J597308

PLATE

2шт.

J575169

REPAIR KIT

Overhaul; Incl. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
