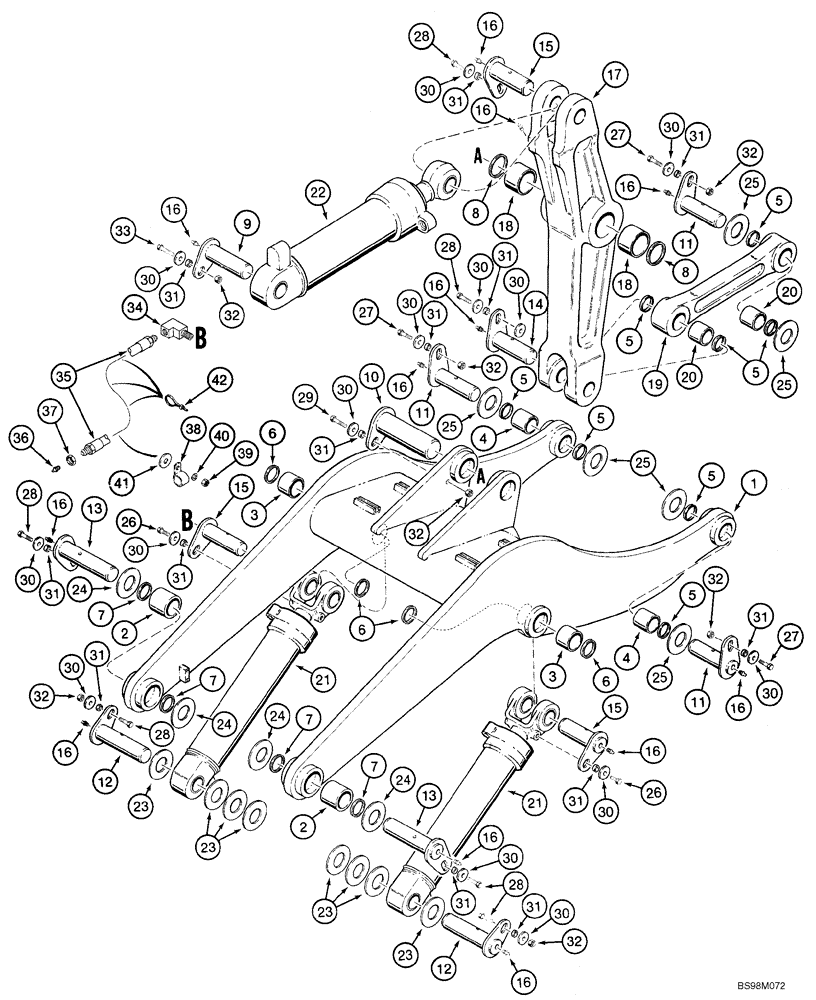

Запчасти Case 821C (09-03) - FRAME - LOADER LIFT (Dec 14 2009 1:22PM) (09) - CHASSIS

231695A1

ROCKER ARM

1шт.

Loader Lift

1шт.

Incl. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

Frame

1шт.

Loader Lift

1шт.

2

L125973

BUSHING,95.41mm ID x 111.25mm OD x 106.5mm L

2шт.

At Chassis

1шт.

3

L125974

BUSHING,82.72mm ID x 95.38mm OD x 78mm L

2шт.

At Lift Cylinder

1шт.

4

L125972

BUSHING,76.38mm ID x 89.03mm OD x 90mm L

2шт.

At Bucket

1шт.

5

L128724

SEAL

8шт.

At Bucket and Dump Link

1шт.

6

L128725

SEAL,82.55mm ID x 95.38mm OD x 7.9mm Thk

4шт.

At Lift Cylinder

1шт.

7

L118750

SEAL,92.71mm ID x 111.25mm OD x 7.95mm Thk

4шт.

At Chassis

1шт.

8

L125033

SEAL,107.95mm ID x 120.65mm OD x 7.92mm Thk

2шт.

Bellcrank Pivot

1шт.

9

L118674

PIVOT PIN

255 mm (10 in)

1шт.

10

L125016

PIN,107.8mm OD x 367mm L

1шт.

11

L128351

PIVOT PIN

249 mm (9-13/16 in)

3шт.

12

L125019

PIN,82.39mm OD x 328mm L

2шт.

13

L125021

PIN,95.09mm OD x 328mm L

2шт.

14

L128351

PIVOT PIN

249 mm (9-13/16 in)

1шт.

15

L125176

PIN,82.39mm OD x 240mm L

3шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

12шт.

L130049

LINKAGE YOKE

1шт.

Loader Bucket

1шт.

Incl. 17,18

1шт.

17

NSS

NOT SOLD SEPARAT

Bellcrank

1шт.

18

L125971

BUSHING,108.12mm ID x 120.8mm OD x 82mm L

2шт.

L128196

POWER ARM

1шт.

Bucket Dump

1шт.

Incl. 19,20

1шт.

19

NSS

NOT SOLD SEPARAT

Link

1шт.

20

L125957

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

2шт.

21

1986601C1

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 806.5mm Stroke

152 ID x 807 mm strk

2шт.

Lift Cylinder

1шт.

See Figure 08-19

1шт.

22

1980385C3

CYLINDER ASSY.

178 ID x 579 mm strk

1шт.

Bucket Tilt

1шт.

See Figure 08-20

1шт.

23

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

4-8шт.

Used As Shim

1шт.

24

L125051

WASHER

4шт.

Used As Shim

1шт.

25

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

6шт.

26

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

2шт.

27

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

3шт.

28

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

6шт.

29

426-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

1шт.

30

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

31

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

13шт.

32

231-14110

LOCK NUT,5/8"-11, GB

4-7шт.

33

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

34

328082A1

ELBOW

1/8 PT

1шт.

35

313079A1

HOSE ASSY.

1шт.

Incl. 36

1шт.

36

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

37

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

38

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

39

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

40

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

41

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.
