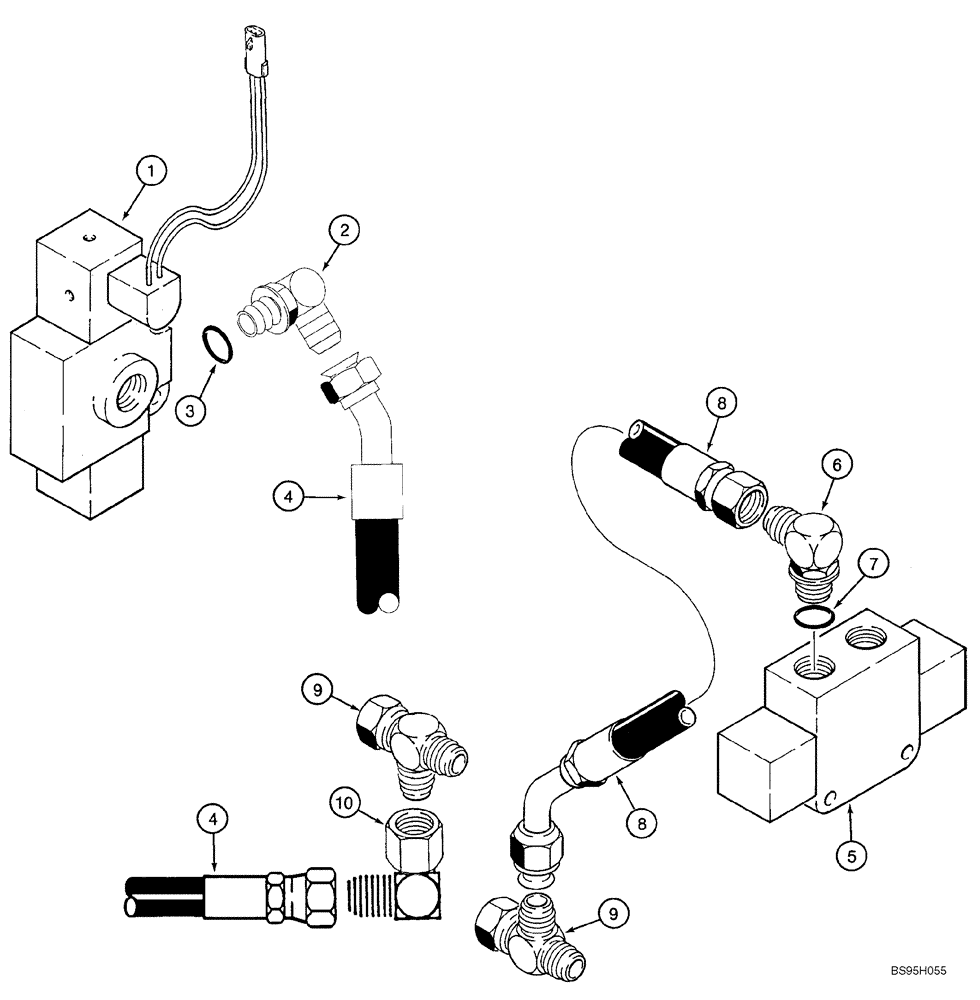

Запчасти Case 821C (08-51) - HYDRAULICS - RIDE CONTROL (Dec 10 2009 4:34PM) (08) - HYDRAULICS

MASTER AND DIRECTIONAL VALVES TO LIFT TUBES

1шт.

1

107866A1

VALVE

1шт.

Master Directional

1шт.

With Electrical Connector

1шт.

See Figure 08-52

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

132979A1

HOSE ASSY.

400 mm (15-3/4 in)

1шт.

To Right Hand Rod End Cylinder Tube

1шт.

5

106488A2

VALVE

2шт.

Directional Control

1шт.

See Figure 08-53

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

131199A1

HOSE ASSY.

510 mm (20 in)

1шт.

Directional Valve To Right Hand Closed End Cylinder Tube

1шт.

9

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

2шт.

10

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.
