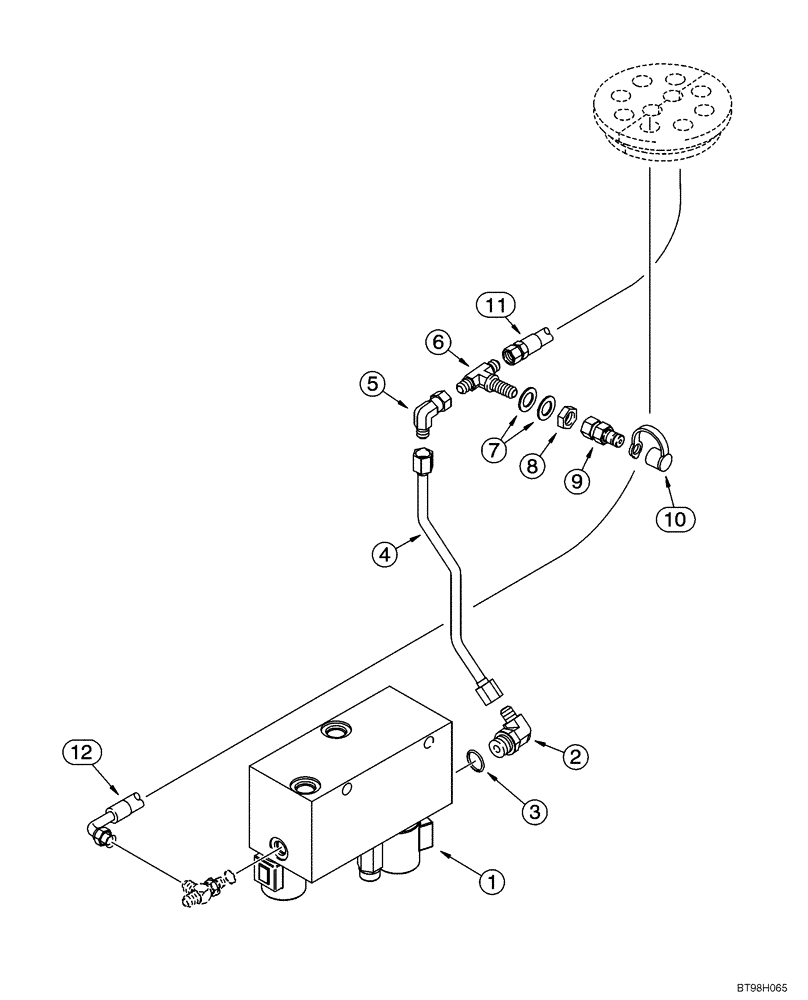

Запчасти Case 821C (08-34) - HYDRAULICS - LOADER CONTROL, REMOTE (Dec 8 2009 4:25PM) (08) - HYDRAULICS

SUPPLY AND RETURN TO HYDRAULIC RESERVOIR

1шт.

1

407165A1

VALVE

1шт.

Combination Valve

1шт.

See Figure 08-47

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

1шт.

Incl. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

242973A1

TUBE,9.525 mm OD, 293, 43 mm Length

1шт.

Supply

1шт.

5

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

6

218-804

TEE,9/16"-18, 37 Degree, Blkhd

1шт.

7

495-81244

WASHER,0.59" ID x 1" OD x 0.06" Thk

17/32 x 1-1/16 x 3/32

2шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

9

101792A1

COUPLING

1шт.

Diagnostic

1шт.

10

H434163

DUST CAP

1шт.

11

293990A1

HOSE ASSY.

1000 mm (39-3/8 in)

1шт.

Supply

1шт.

12

302518A1

HOSE ASSY.

1480 mm (58-1/4 in)

1шт.

Return

1шт.

Attaches to 218-5243 Tee at Combination Valve

1шт.

See Figure 07-06, REF 19

1шт.
