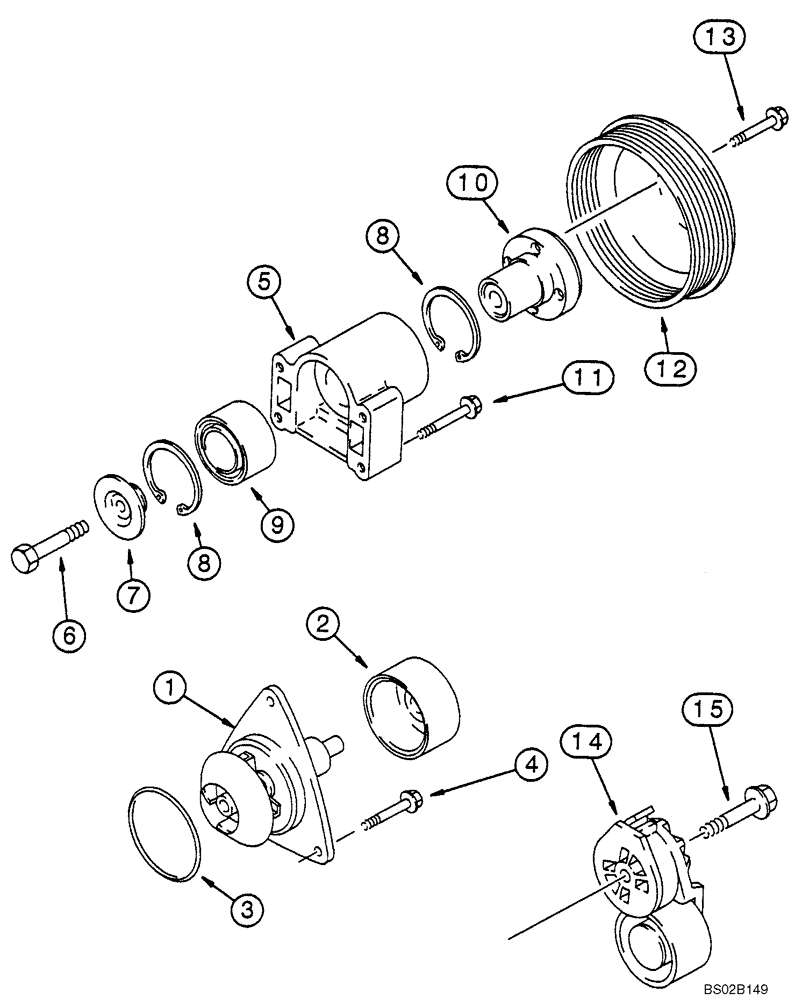

Запчасти Case 821C (02-08) - WATER PUMP SYSTEM (02) - ENGINE

REF

INSTRUCTION

6TAA-830 EMISSIONS CERTIFIED ENGINE

1шт.

J804927

WATER PUMP

Includes 1 - 3

1шт.

87308650R

REMAN-WATER PUMP

821C (S/N JEE0155001 & AFTER) Reman for New P/N J804927

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

J934054

FLANGE BOLT

M8 x 28

3шт.

J942896

SUPPORT

Includes 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

Support

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

4шт.

12

J926855

PULLEY,187.23mm OD

1шт.

13

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

14

J945849

BELT TENSIONER

1шт.

15

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.
