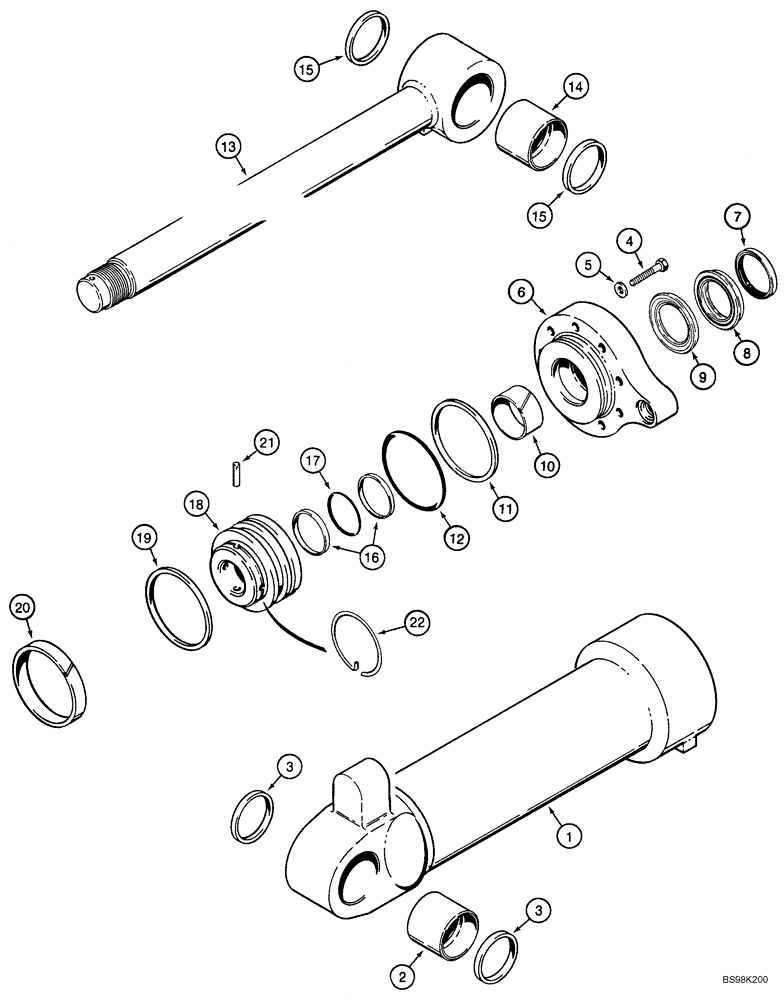

Запчасти Case 821C (08-20) - CYLINDER ASSY - LOADER BUCKET (Oct 17 2006 3:35PM) (08) - HYDRAULICS

1980385C3

CYLINDER ASSY.

178 ID x 579 mm strk

1шт.

Bucket

1шт.

Incl. 1-22

1шт.

Cylinder Assembly Part Number Stamped On Some Cylinder Glands Or Tubes

1шт.

1

1343663C1

JACK BODY

1шт.

Incl. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

1шт.

3

L104363

WIPER SEAL

2шт.

4

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

9шт.

5

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

9шт.

NSS

NOT SOLD SEPARAT

Gland

1шт.

Cylinder

1шт.

Incl. 6-12

1шт.

Order Components

1шт.

6

1343667C1

GLAND

1шт.

7

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

1шт.

1543309C1

SEAL KIT

1шт.

Incl. 7-12, 16, 17, 19, 20

1шт.

1542882C1

STRIPPER PACKAGE

1шт.

Not Serviced Separately

1шт.

Seal

1шт.

Incl. 8,9

1шт.

Order 1543309C1

1шт.

8

NSS

NOT SOLD SEPARAT

Seal

1шт.

Rod

1шт.

Order 1543309C1

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

Buffer Seal

1шт.

Order 1543309C1

1шт.

10

G110677

HYD CYL SLEEVE

1шт.

11

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

1шт.

12

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

13

1980386C2

PISTON ROD

1шт.

Incl. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

1шт.

15

L104363

WIPER SEAL

2шт.

16

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

2шт.

17

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

18

1980389C2

JACK PISTON

1шт.

19

S110158

SEAL

1шт.

20

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

1шт.

21

G106602

LOCK PIN

1шт.

22

1980390C1

RING, SNAP

RING SNAP

1шт.

1543309C1

SEAL KIT

1шт.

Incl. 7-12, 16, 17, 19, 20

1шт.
