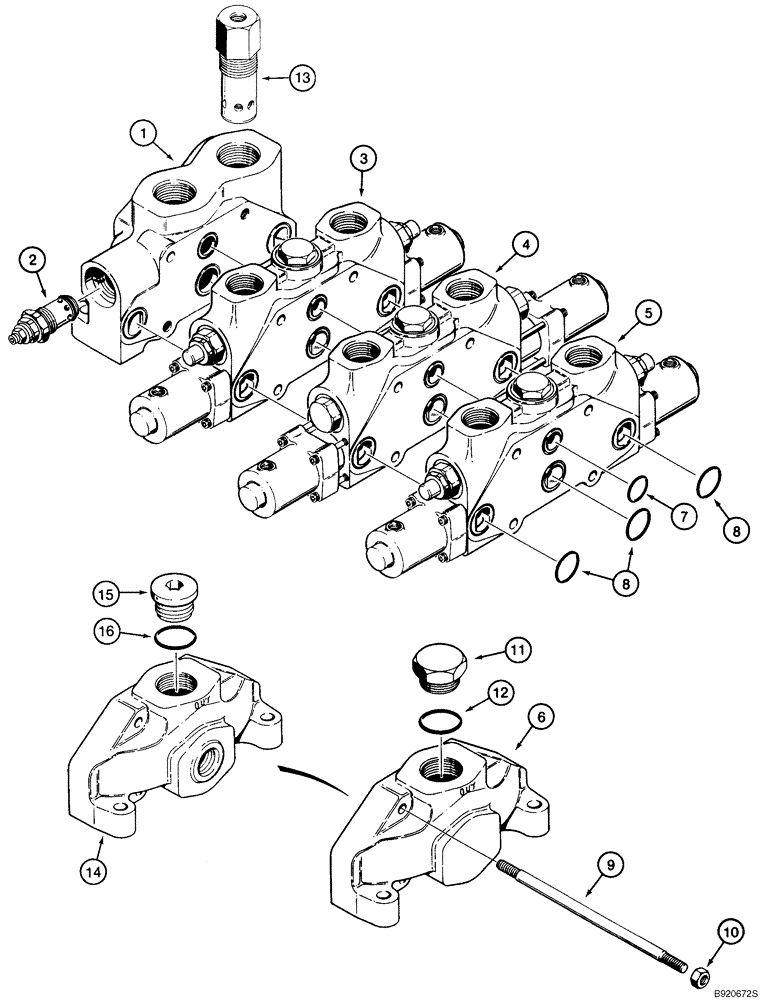

Запчасти Case 821C (08-13) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (Jun 4 2010 3:49PM) (08) - HYDRAULICS

NORTH AMERICA AND EUROPE

1шт.

L126101

VALVE

Loader Control

1шт.

Three Spool

1шт.

Incl. 1-13

1шт.

1

S300884

VALVE BLOCK

Inlet And Outlet

1шт.

2

S300885

VALVE

Main Relief

1шт.

See Figure 08-48B

1шт.

3

S300880

VALVE BLOCK

Bucket

1шт.

See Figure 08-16

1шт.

4

S300881

VALVE BLOCK

Lift

1шт.

See Figure 08-15

1шт.

5

S300871

VALVE

Auxiliary

1шт.

See Figure 08-17

1шт.

6

N9484

COVER

1шт.

End Cover

1шт.

7

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

4шт.

8

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

12шт.

9

N9247

STUD

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

4шт.

11

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1-7/8 Or

1шт.

Incl. 12

1шт.

12

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

13

S300886

VALVE

1шт.

Low Pressure

1шт.

See Figure 08-48A

1шт.

POWER BEYOND KIT

1шт.

L36349

KIT

Power Beyond

1шт.

Incl. 14-16

1шт.

14

S301816

COVER

1шт.

Outlet

1шт.

15

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

Incl. 16

1шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.
