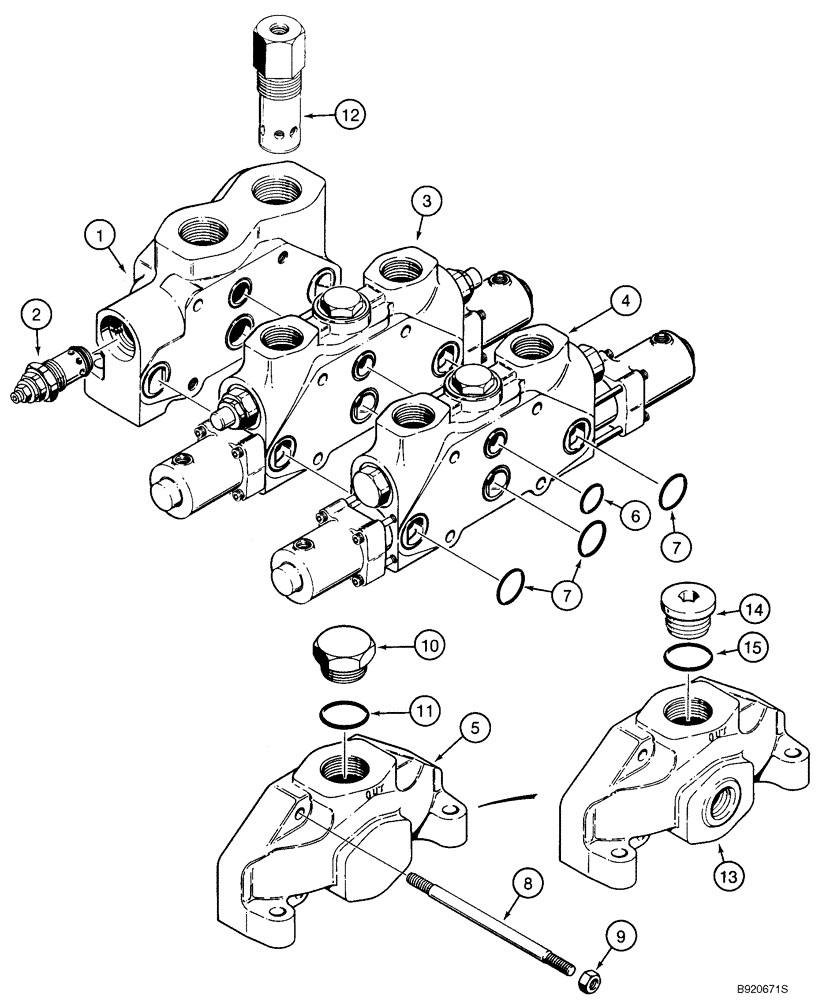

Запчасти Case 821C (08-12) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (Jun 4 2010 3:49PM) (08) - HYDRAULICS

NORTH AMERICA ONLY

1шт.

L126100

VALVE

1шт.

Loader Control

1шт.

Two Spool

1шт.

Incl. 1-12

1шт.

1

S300884

VALVE BLOCK

1шт.

Inlet And Outlet

1шт.

2

S300885

VALVE

1шт.

Main Relief

1шт.

See Figure 08-48B

1шт.

3

S300880

VALVE BLOCK

1шт.

Bucket

1шт.

See Figure 08-16

1шт.

4

S300881

VALVE BLOCK

1шт.

Lift

1шт.

See Figure 08-15

1шт.

5

N9484

COVER

1шт.

End Cover

1шт.

6

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

3шт.

7

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

9шт.

8

N9486

BOLT

4шт.

Tie

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

4шт.

10

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1-7/8 Or

1шт.

Incl. 11

1шт.

11

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

12

S300886

VALVE

1шт.

Low Pressure

1шт.

See Figure 08-48A

1шт.

POWER BEYOND KIT

1шт.

L36349

KIT

1шт.

Incl. 13-15

1шт.

13

S301816

COVER

1шт.

14

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

Incl. 15

1шт.

15

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.
