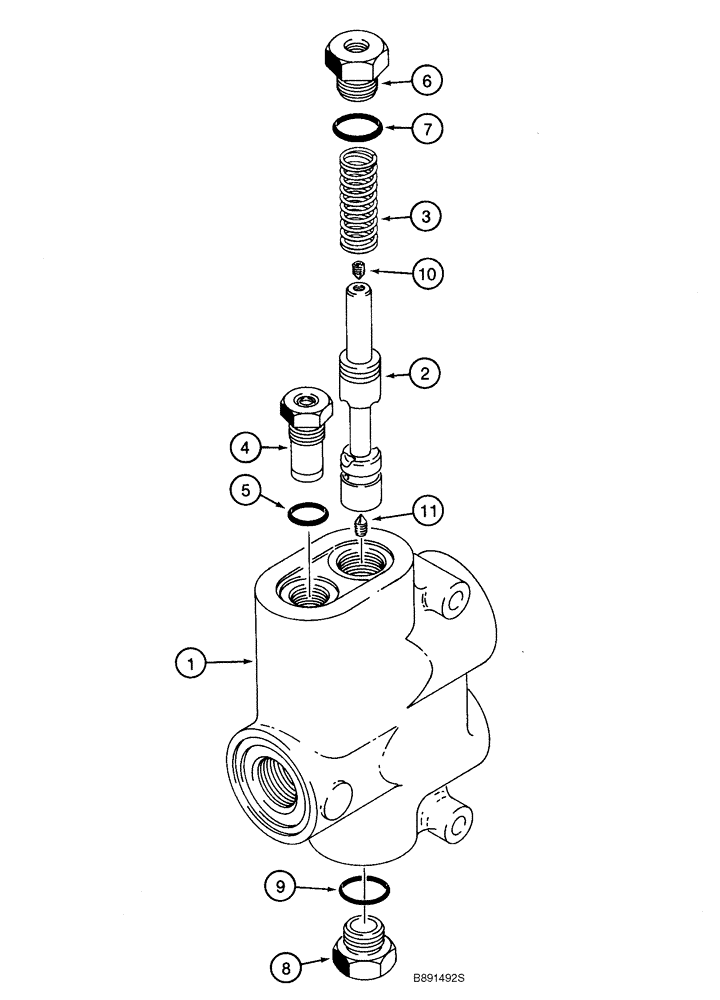

Запчасти Case 821C (08-11A) - VALVE ASSY - FLOW CONTROL (Dec 31 2008 12:42PM) (08) - HYDRAULICS

L126106

VALVE

Flow Control; Incl. 1-11

1шт.

87373036

HYDRAULIC VALVE

VALVE Flow Control; Incl. 1-11; Replaces L126106

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

S114008

SPRING

1шт.

S113025

CARTRIDGE

Incl. 4, 5

1шт.

87373113

HYDRAULIC VALVE

CARTRIDGE Used With 87373036 Valve; Incl. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Cartridge; Component Parts Not Serviced Separately

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

S300790

FITTING

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

86512512

PLUG,7/8" - 14 ORB

Incl. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

S300791

SCREW

Upper

1шт.

11

S300792

SCREW

Lower

1шт.
