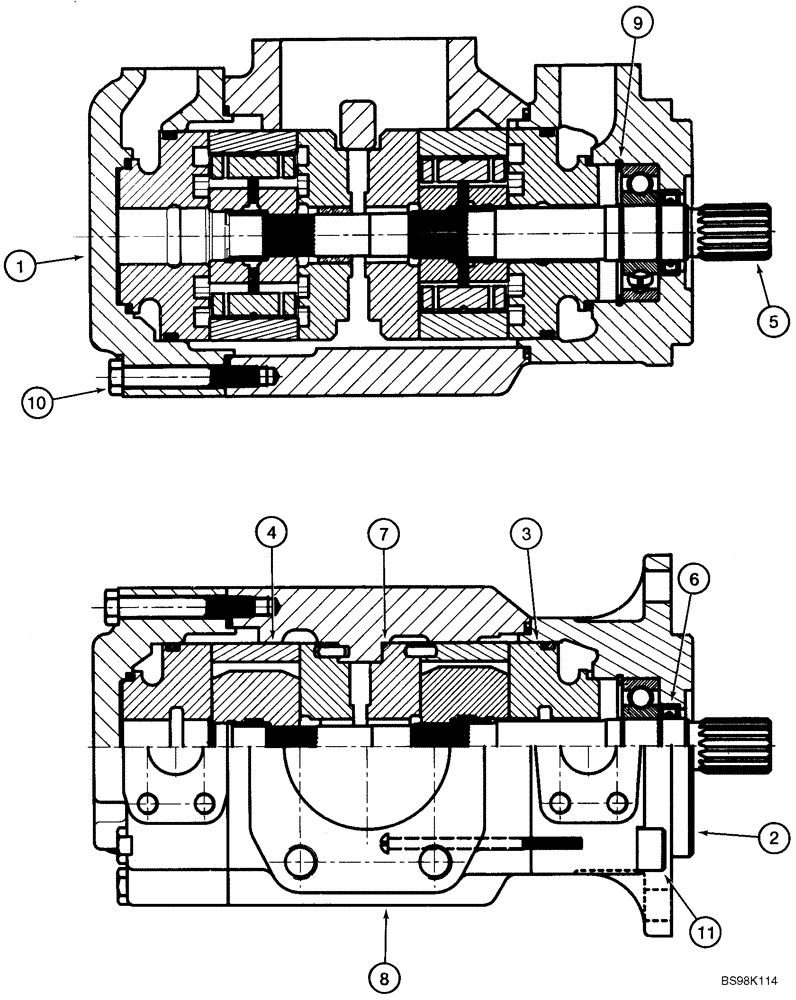

Запчасти Case 821C (08-11) - PUMP ASSY (NOV 30 2011 9:37AM) (08) - HYDRAULICS

226568A1

PUMP, HYDRAULIC,89.64 CC

1шт.

Incl. 1-12

1шт.

226568A1R

REMAN-HYD PUMP

821C, S/N JEE0155001 & Aft.

1шт.

226568A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

256613A1

CAP

1шт.

Port End

1шт.

2

256617A1

CAP

1шт.

Shaft End

1шт.

3

319940A1

VALVE

1шт.

Internal

1шт.

Shaft End

1шт.

Component Parts Not Serviced Separately

1шт.

4

319938A1

VALVE

1шт.

Internal

1шт.

Port End

1шт.

Component Parts Not Serviced Separately

1шт.

5

256628A1

BEARING ASSY

1шт.

Incl. Bearing

1шт.

Component Parts Not Serviced Separately

1шт.

6

256629A1

SEAL KIT

1шт.

Incl. Shaft Seal

1шт.

Component Parts Not Serviced Separately

1шт.

7

256626A1

LARGE PLATE

PLATE, LARGE

1шт.

Rear Port Plate and Bushing

1шт.

Internal

1шт.

8

256619A1

HOUSING

1шт.

Center

1шт.

9

3215468R1

RING

1шт.

Shaft and Bearing

1шт.

10

3215476R1

BOLT

7шт.

Rear End Cover

1шт.

11

3215477R1

BOLT

4шт.

Shaft End Cover

1шт.

12

256625A1

LARGE PLATE

PLATE, LARGE

1шт.

Rear Port

1шт.

Not Illustrated

1шт.
