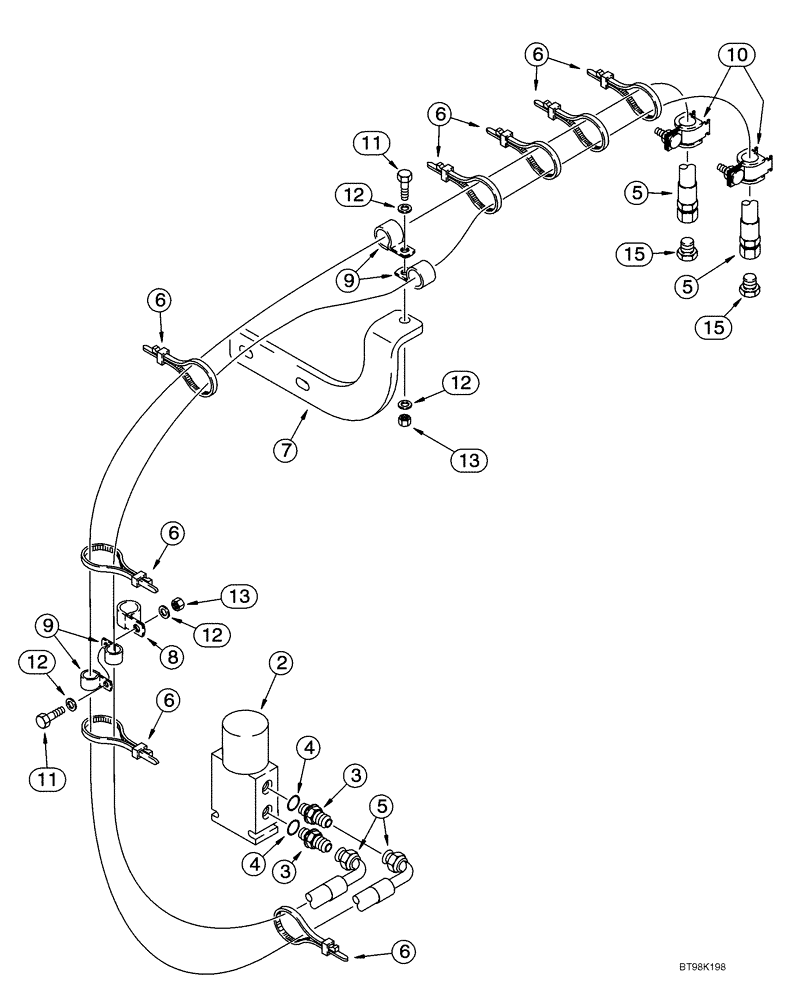

Запчасти Case 821C (08-10B) - HYDRAULICS - COUPLER (08) - HYDRAULICS

NORTH AMERICA ONLY

1шт.

1

305267A1

ACS Pro-Series 2000

1шт.

Complete, With Hoses From Locking Cylinders to Case Corp Plumbing on Lift Arms

1шт.

Part Is Available From The Supplier Through Your Local Dealer

1шт.

Not Illustrated

1шт.

1a

305270A1

JRB Series

1шт.

Complete, With Hoses From Locking Cylinders to Case Corp Plumbing on Lift Arm

1шт.

Part Is Available From The Supplier Through Your Local Dealer

1шт.

Not Illustrated

1шт.

2

118857A1

VALVE

1шт.

Coupler Locking

1шт.

See Figure 08-11C

1шт.

3

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

Incl. 4

1шт.

5

303761A1

HOSE ASSY.

3100 mm (122 in)

2шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

7

299325A1

BRACKET

1шт.

8

515-23508

CLAMP,2", Insul, 3/8" Bolt

19 mm

1шт.

9

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

10

303374A1

CLAMP

2шт.

Incl. Hardware

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

218-772

PLUG,7/16"-20, 37 Degree

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
