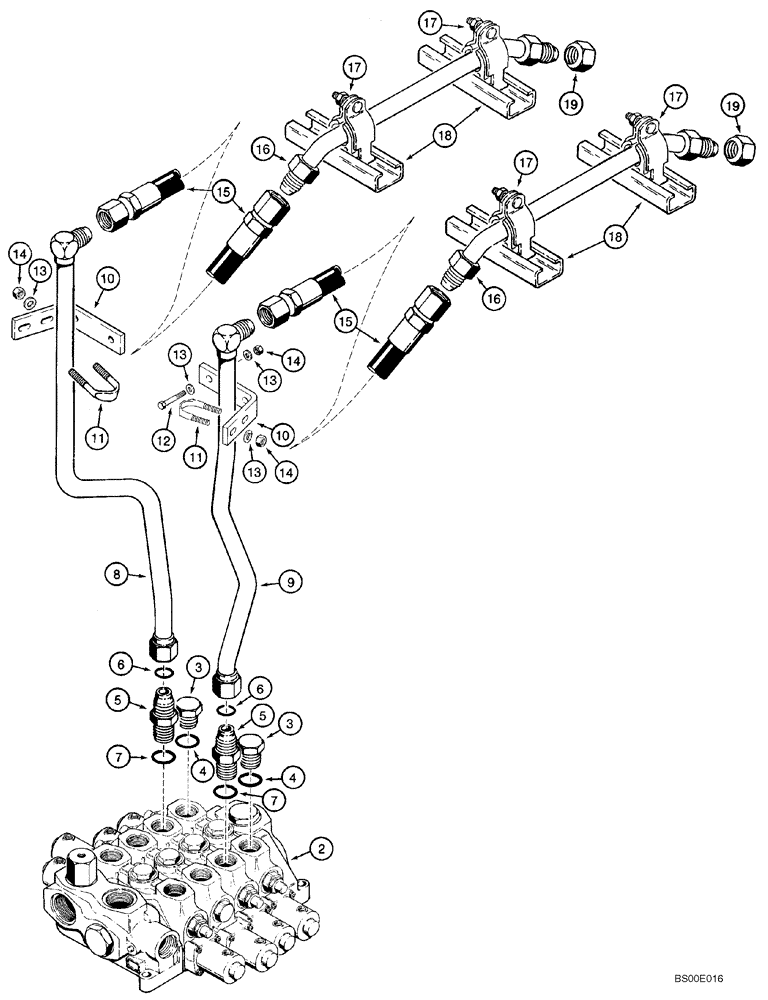

Запчасти Case 821C (08-09) - HYDRAULICS - LOADER AUXILIARY (Mar 11 2010 9:50AM) (08) - HYDRAULICS

CONTROL VALVE TO CYLINDERS

1шт.

1

L126101

VALVE

1шт.

Loader Control

1шт.

Three Spool

1шт.

See Figure 08-13

1шт.

Not Illustrated

1шт.

2

L126102

VALVE

1шт.

Loader Control

1шт.

Four Spool

1шт.

North America Only

1шт.

See Figure 08-14

1шт.

3

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

1-5/8 Or

2шт.

Incl. 4

1шт.

Use to Plug Ports of Fourth Valve Section on Units With a Four Spool Valve

1шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

5

L124289

CONNECTOR, ELEC

CONNECTOR Incl. 6, 7

2шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

Boss End

1шт.

7

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

8

L125734

TUBE,31.75 mm OD

1шт.

Left Hand

1шт.

9

L125732

TUBE,31.75 mm OD

1шт.

Right Hand

1шт.

10

L129435

SUPPORT

2шт.

11

L129257

U-BOLT

2шт.

12

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

4шт.

13

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

8-12шт.

14

231-1446

NUT,3/8" - 16, Gr 5

8шт.

15

L125746

HOSE

1425 mm (56-1/8 in)

2шт.

16

L125736

PIPE,31.75 mm OD x 480, 277 mm L

2шт.

17

S93266

CLAMP

4шт.

Incl. Hardware

1шт.

18

S98413

SUPPORT

127 mm (5 in)

4шт.

Welded On

1шт.

19

218-758

CAP,37 Degree, 1 5/16"-12

1-5/16

2шт.

If Required

1шт.
