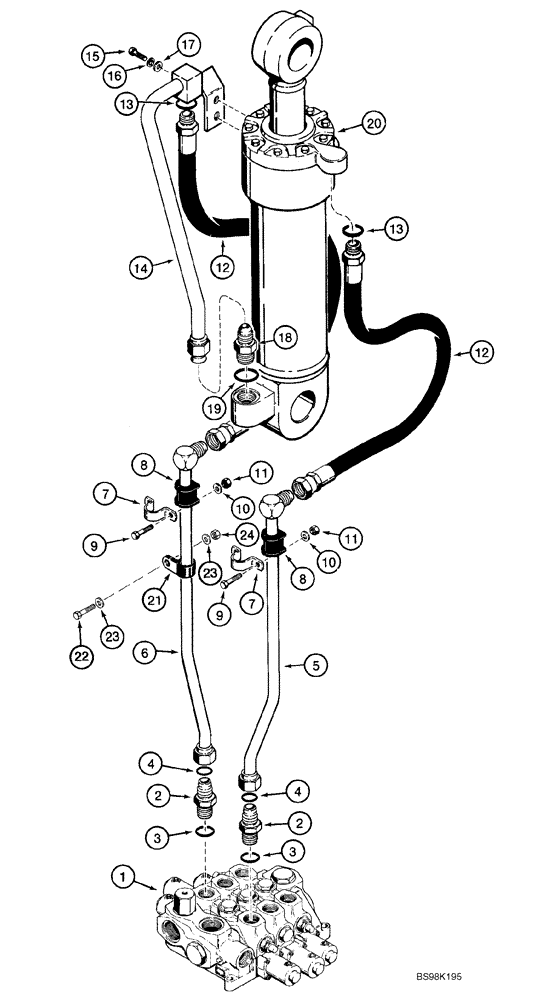

Запчасти Case 821C (08-08) - HYDRAULICS - LOADER BUCKET (Mar 11 2010 9:50AM) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control

1шт.

Loader Control

1шт.

See Figure 08-12 - 08-14

1шт.

2

L124289

CONNECTOR, ELEC

CONNECTOR

2шт.

Incl. 3, 4

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

Boss End

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

Flare End

1шт.

5

L125373

TUBE,31.75 mm OD x 903, 86 mm L

1шт.

Supply

1шт.

Right Hand

1шт.

6

L125371

TUBE,31.75 mm OD x 918, 152 mm L

1шт.

Supply

1шт.

Left Hand

1шт.

7

L124293

MOUNTING CLIP

2шт.

8

D67298

INSULATOR

2шт.

9

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

4шт.

10

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

4шт.

11

231-1446

NUT,3/8" - 16, Gr 5

4шт.

12

L125369

HOSE,25.4mm ID x 1360mm L, SAE 100R12

1360 mm (53-5/8 in)

2шт.

Incl. 13

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

14

L125365

PIPE,31.75 mm OD x 751, 221 mm L

1шт.

Bucket Cylinder

1шт.

15

426-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 8

1/2 x 1-1/8

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

18

218-5041

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

1-5/8 fl x 1-7/8 Or

1шт.

Incl. 19

1шт.

19

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

Boss End

1шт.

20

1980385C3

CYLINDER ASSY.

178 ID x 579 mm strk

1шт.

Loader Bucket

1шт.

See Figure 08-20

1шт.

21

515-23508

CLAMP,2", Insul, 3/8" Bolt

19 mm

1шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
