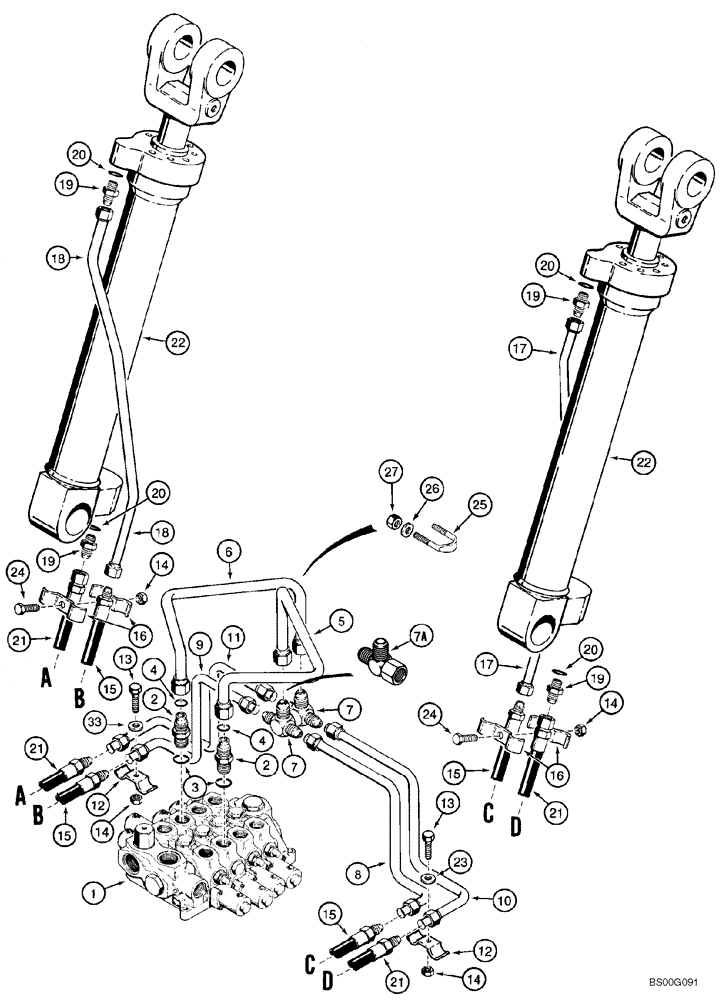

Запчасти Case 821C (08-07) - HYDRAULICS - LOADER LIFT (Dec 18 2009 2:45PM) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control

1шт.

Loader Control

1шт.

See Figure 08-12 - 08-14

1шт.

2

L124289

CONNECTOR, ELEC

CONNECTOR

2шт.

Incl. 3, 4

1шт.

Valve to Lift Tubes

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

Boss End

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

Flare End

1шт.

5

L125377

PIPE,31.75 mm OD x 422, 268 mm L

1шт.

Supply

1шт.

Right Hand

1шт.

6

L125375

PIPE,31.75 mm OD

1шт.

Supply

1шт.

Left Hand

1шт.

7

218-603

TEE,37 Degree, 1 5/16"-12 x 1 5/8"-12, Br

2шт.

7a

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

2шт.

Models With Ride Control

1шт.

8

L125381

PIPE,25.4 mm OD

1шт.

Lift Cylinder

1шт.

Right Hand

1шт.

Rod End

1шт.

9

L125385

PIPE,25.4 mm OD

1шт.

Lift Cylinder

1шт.

Left Hand

1шт.

Rod End

1шт.

9a

108897A1

TUBE

1шт.

Lift Cylinder

1шт.

Left Hand

1шт.

Rod End, Models With Ride Control

1шт.

Not Illustrated

1шт.

10

L125379

PIPE,25.4 mm OD

1шт.

Lift Cylinder

1шт.

Right Hand

1шт.

Closed End

1шт.

11

L125383

PIPE,25.4 mm OD

1шт.

Lift Cylinder

1шт.

Left Hand

1шт.

Closed End

1шт.

11a

108895A1

HYD TUBE

1шт.

Lift Cylinder

1шт.

Left Hand

1шт.

Closed End

1шт.

Models With Ride Control

1шт.

Not Illustrated

1шт.

12

R15257

CLAMP

2шт.

13

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

14

231-1446

NUT,3/8" - 16, Gr 5

4шт.

15

L125345

HOSE

1400 mm (55-1/8 in)

2шт.

16

D137643

SHIN

4шт.

17

L125367

PIPE,25.4 mm OD

1шт.

Right Hand

1шт.

Rod End

1шт.

18

L125387

PIPE,25.4 mm OD

1шт.

Left Hand

1шт.

Rod End

1шт.

19

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

4шт.

1-5/16 fl x Or

1шт.

Incl. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

L125389

HOSE

1425 mm (56-1/8 in)

2шт.

Closed End

1шт.

22

1986601C1

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 806.5mm Stroke

152 ID x 807 mm strk

2шт.

Lift Cylinder

1шт.

See Figure 08-19

1шт.

23

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

24

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

25

L104253

U-BOLT

2шт.

26

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

27

231-1445

NUT,5/16"-18, GB

4шт.
