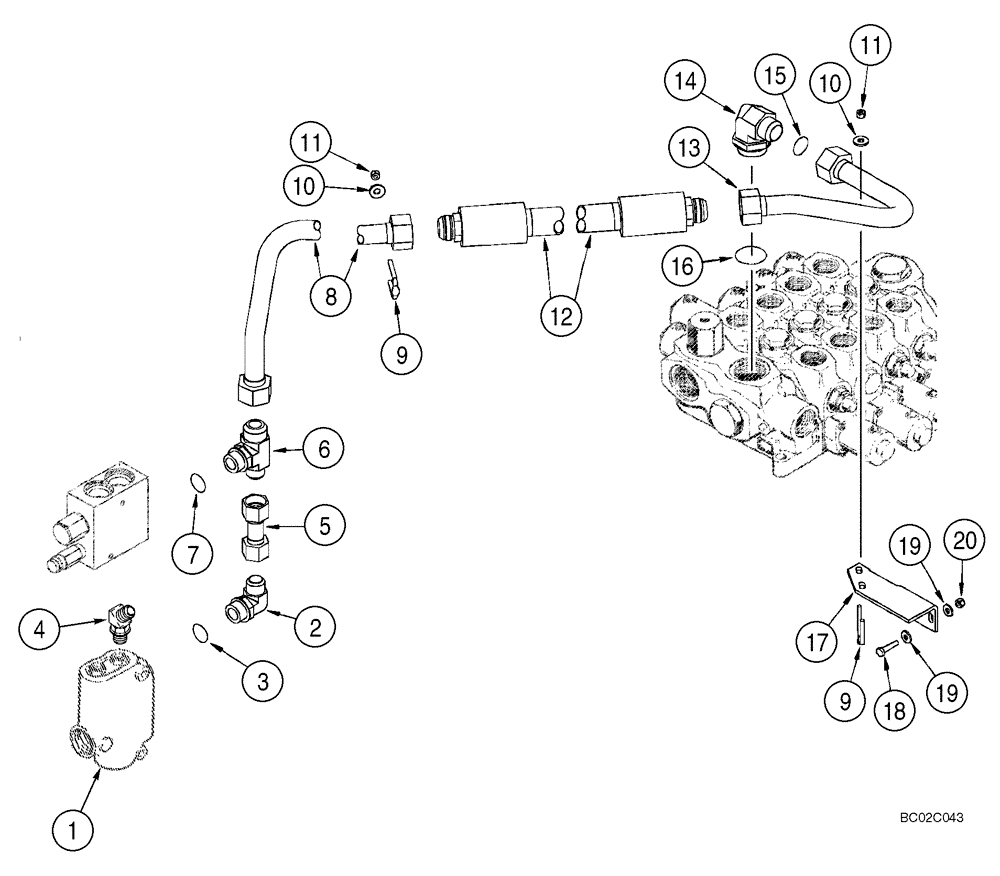

Запчасти Case 821C (08-05) - HYDRAULICS - PRIORITY VALVE (08) - HYDRAULICS

PRIORITY VALVE TO CONTROL VALVE

1шт.

1

L126106

VALVE

1шт.

Flow Control

1шт.

See Figure 08-11A

1шт.

2

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

1-5/16 fl x adj Or

1шт.

Incl. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj

1шт.

5

L127931

PIPE,25.4 mm OD x 81 mm L

1шт.

6

218-5191

TEE,1 5/8"-12, 37 Degree x1 1/16"-12 x 1 5/16"-12, O-Ring Br

1шт.

Incl. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

L127933

PIPE,31.75 mm OD x 302, 263 mm L

1шт.

Pressure

1шт.

9

L104253

U-BOLT

2шт.

10

D41740

WASHER

3/8

4шт.

11

231-1445

NUT,5/16"-18, GB

4шт.

12

L125349

HOSE,31.75mm ID x 615mm L, SAE 100R12

615 mm (24-1/4 in)

1шт.

13

L125282

PIPE,91.75 mm OD

1шт.

14

L125908

FITTING

1шт.

Incl. 15, 16

1шт.

15

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

16

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

17

L125941

SUPPORT

1шт.

19

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

4шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

18

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.
