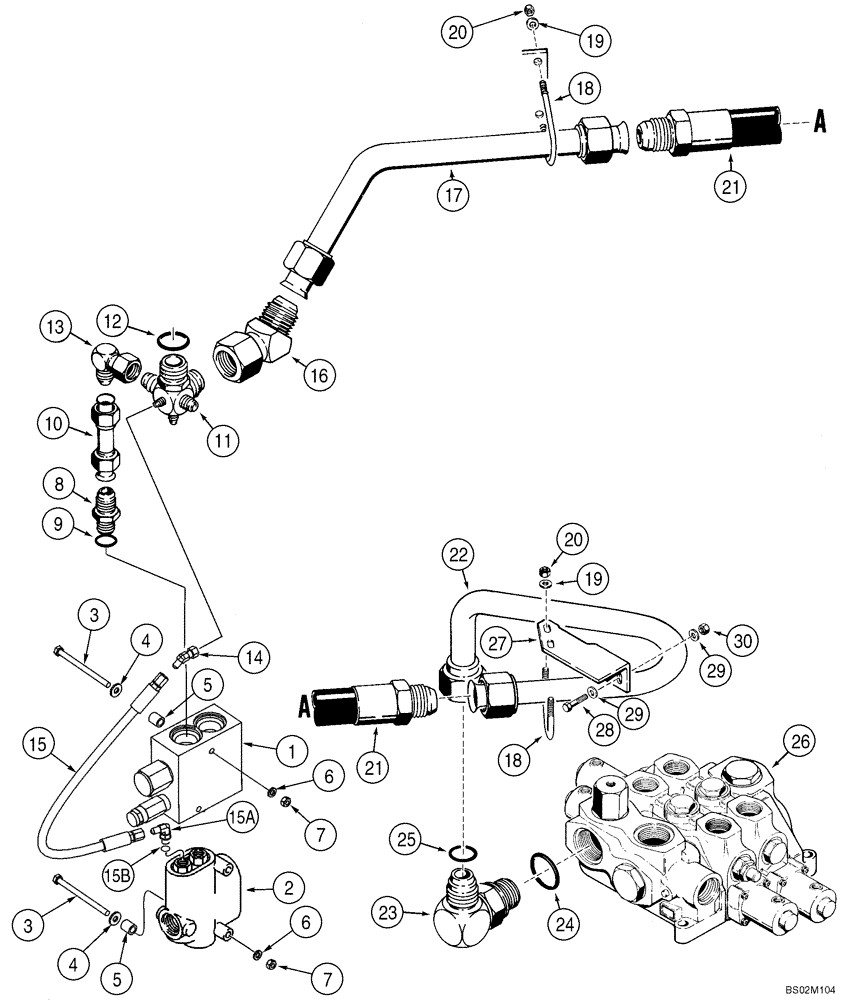

Запчасти Case 821C (08-03) - HYDRAULICS - VALVE, PRIORITY AND UNLOADING (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
UNLOADING VALVE TO CONTROL VALVE
1шт.
1
191917A2
VALVE
Unloading Valve; See Figure 08-11B
1шт.
2
L126106
VALVE
Flow Control; See Figure 08-11A
1шт.
2
87373036
HYDRAULIC VALVE
Flow Control; See Figure 08-11A; Replaces L126106
1шт.
3
827-8110
BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9
4шт.
4
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
4шт.
5
D76195
SPACER,10.31mm ID x 15.88mm OD x 17.78mm L
4шт.
6
892-11008
LOCK WASHER,8mm ID
4шт.
7
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
4шт.
8
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. 9
1шт.
10
L125902
PIPE,25.4 mm OD x 108 mm L
1шт.
11
108748A1
FITTING
Incl. 12
1шт.
12
237-6024
O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro
1шт.
13
218-5234
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw
1шт.
14
218-5170
ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC
1шт.
15
D95111
HOSE
584 mm (23 in)
1шт.
15a
218-5103
90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
Incl. 15B
1шт.
15b
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
16
218-5178
ELBOW,45 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Female JIC
1шт.
17
L125607
PIPE,38.09 mm OD x 295, 114 mm L
Return
1шт.
18
L105791
U-BOLT
2шт.
19
D41740
WASHER
3/8
4шт.
20
231-1445
NUT,5/16"-18, GB
4шт.
21
L125353
HOSE
615 mm (22-1/4 in)
1шт.
22
L125284
PIPE,38.09 mm OD
1шт.
23
L125907
FITTING
Incl. 24, 25
1шт.
24
237-6024
O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro
1шт.
25
S98648
O-RING
1-3/8 ID x 1/16
1шт.
26
REF
INSTRUCTION
Valve, Control; See Figure 08-12 - 08-14
1шт.
27
L125941
SUPPORT
1шт.
29
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
4шт.
30
832-10408
NUT,M8 x 1.25, Cl 8.8
2шт.
28
827-8035
BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9
2шт.
Выбрано товаров: 34
