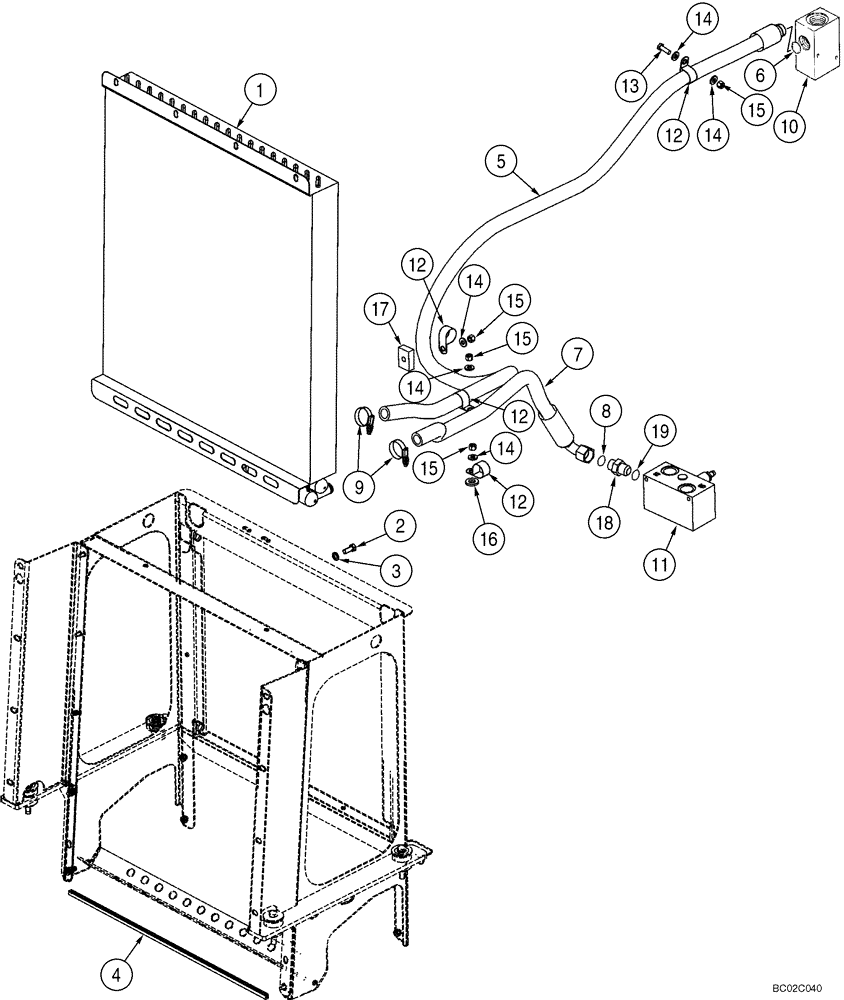

Запчасти Case 821C (08-02) - HYDRAULICS - OIL COOLER AND LINES (08) - HYDRAULICS

1

412542A2

OIL COOLER

1шт.

Hydraulic

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

434123A1

SEAL

700 mm (27-1/2 in)

1шт.

5

434549A1

HOSE ASSY.

2550 mm (100-3/8 in)

1шт.

Incl. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

434548A1

HOSE ASSY.

900 mm (35-7/16 in)

1шт.

Incl. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

353036A1

HOSE CLAMP,32mm - 54mm

2шт.

10

434551A1

MANIFOLD

1шт.

11

433292A2

VALVE, PRESSURE RELI

EF

1шт.

See Figure 08-48

1шт.

12

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

4шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

5шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

16

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

17

1978431C1

CLAMP

1шт.

18

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

Incl. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
