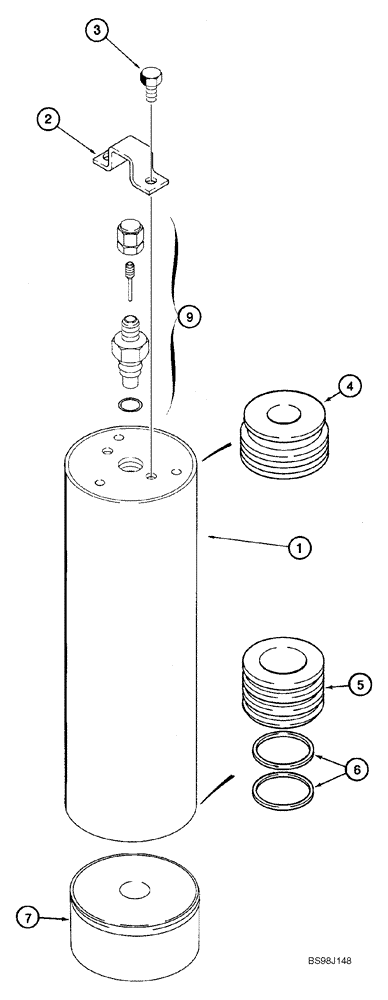

Запчасти Case 821C (07-10) - ACCUMULATOR - BRAKE (Jan 11 2010 11:34AM) (07) - BRAKES

*

NORTH AMERICA ONLY

1шт.

*

365757A1

ACCUMULATOR

Used On Models After S/N JEE0123402

2шт.

*

Incl. 1-9

1шт.

*

284444A1

ACCUMULATOR

Used On Models Prior To S/N JEE0123403; Incl. 10 - 15; Not Illustrated

2шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

337196A1

GUARD

1шт.

3

338532A1

SCREW

2шт.

4

337193A1

PLUG

1шт.

5

337194A1

PISTON

1шт.

6

337195A1

RING

2шт.

7

337192A1

PLUG

1шт.

8

337197A1

SET OF PARTS

1шт.

*

Seal

1шт.

*

Incl. 9

1шт.

9

337198A1

VALVE

1шт.

*

Charge Valve

1шт.

*

Component Parts Not Serviced Separately

1шт.

*

REF

INSTRUCTION

References 10 - 15 Are Not Illustrated; Parts Are Used With 284444A1 Accumulator

1шт.

10

192895A1

PROTECTOR

1шт.

11

337193A1

PLUG

1шт.

12

192894A1

PISTON

1шт.

13

337195A1

RING

2шт.

14

192936A1

SEAL KIT

1шт.

15

281-2456

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 3/8"

2шт.
