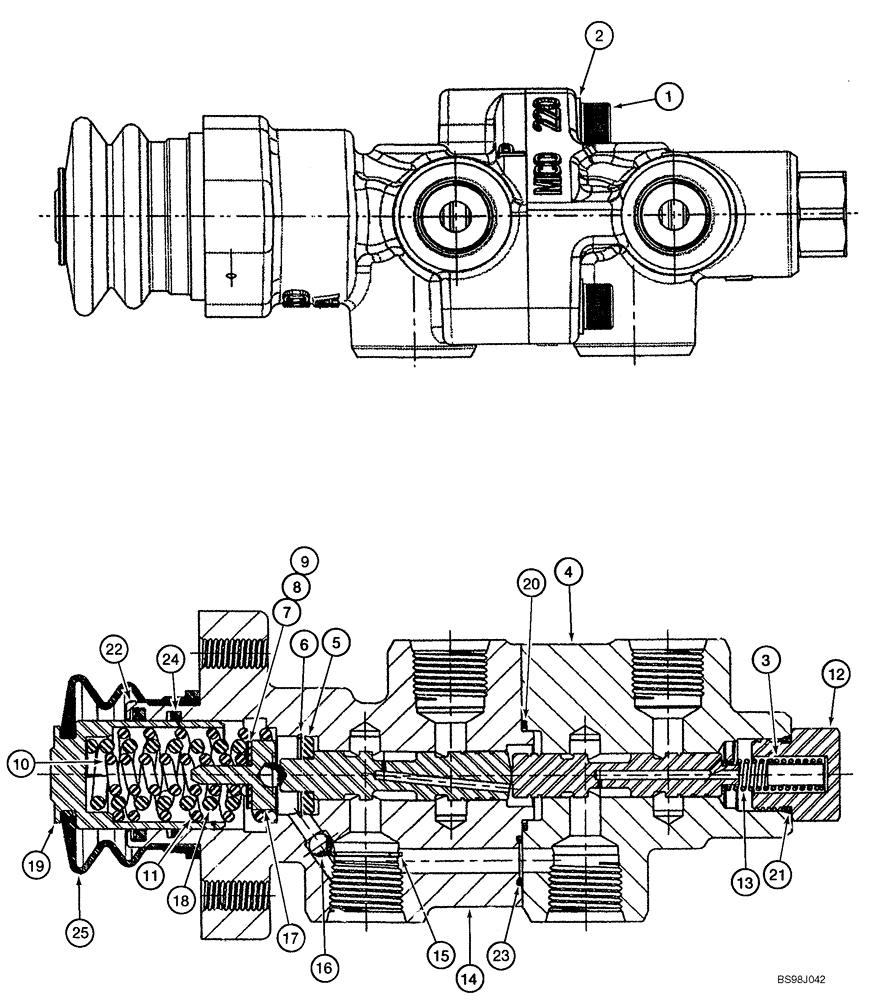

Запчасти Case 821C (07-09) - VALVE ASSY - BRAKE (Feb 15 2005 2:49PM) (07) - BRAKES

331968A1

VALVE

Main Brake; Incl. 1-25; Component Parts No Longer Serviced Separately; Boot And External Seals Replaced With Kit 331971A1

1шт.

393885A2

VALVE, BRAKE

See Figure 07-09; For Mounting, See Figure 07-02; Replaces 331968A1

1шт.

1

100672A1

HEX SOC SCREW,5/16" - 18 x 1"

2шт.

2

100673A1

WASHER

2шт.

3

NSS

NOT SOLD SEPARAT

Retainer

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

NSS

NOT SOLD SEPARAT

Spacer

1шт.

6

NSS

NOT SOLD SEPARAT

Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Shim

1шт.

8

NSS

NOT SOLD SEPARAT

Shim

1шт.

9

NSS

NOT SOLD SEPARAT

Shim

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Plug

1шт.

13

NSS

NOT SOLD SEPARAT

Spring

1шт.

14

NSS

NOT SOLD SEPARAT

Housing

1шт.

15

NSS

NOT SOLD SEPARAT

Ring

1шт.

16

NSS

NOT SOLD SEPARAT

Ball

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer

1шт.

18

NSS

NOT SOLD SEPARAT

Spring

1шт.

19

NSS

NOT SOLD SEPARAT

Piston

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

41/64 ID x 3/32

1шт.

22

NSS

NOT SOLD SEPARAT

Cup

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

24

NSS

NOT SOLD SEPARAT

Ring

1шт.

25

NSS

NOT SOLD SEPARAT

Boot

1шт.

331971A1

SEAL KIT

1шт.

Incl. 20-25

1шт.

Component Parts No Longer Serviced Separately

1шт.
