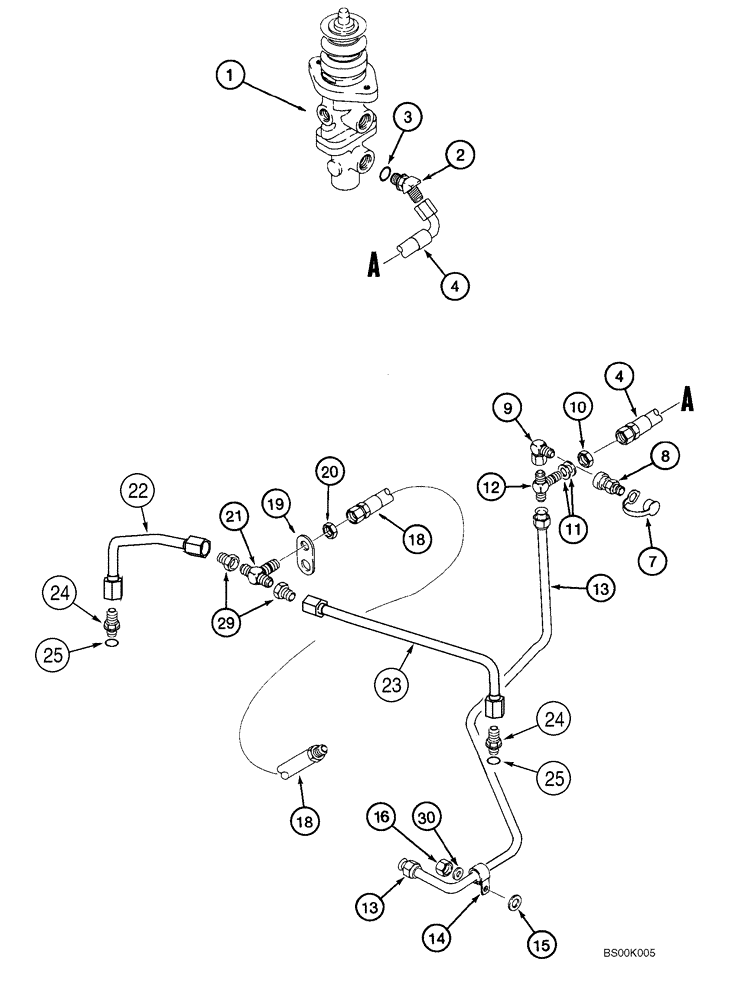

Запчасти Case 821C (07-08) - HYDRAULICS - BRAKE, MAIN (Jan 11 2010 11:28AM) (07) - BRAKES

MAIN BRAKE VALVE TO REAR AXLE

1шт.

1

331968A1

VALVE

See Figure 07-09; For Mounting, See Figure 07-02

1шт.

1

393885A2

VALVE, BRAKE

See Figure 07-09; For Mounting, See Figure 07-02; Replaces 331968A1

1шт.

2

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

1шт.

Incl. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

338654A1

HOSE ASSY.

1303 mm (51-5/16 in)

1шт.

Rear Brakes

1шт.

7

H434163

DUST CAP

1шт.

8

192834A1

COUPLING

1шт.

Check Port

1шт.

9

218-5381

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

11

495-81051

WASHER,29/32" x 1 1/4" x .060"

2шт.

12

218-806

TEE,7/8"-14, 37 Degree, Blkhd

1шт.

13

339467A1

TUBE

1шт.

14

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

18

339461A1

HOSE ASSY.

630 mm (25 in)

1шт.

19

339484A2

BRACKET

1шт.

Use Bolt From Rear, Serial Range: Axle-Mount

1шт.

20

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

21

218-806

TEE,7/8"-14, 37 Degree, Blkhd

1шт.

22

345520A1

TUBE

1шт.

Rear Axle

1шт.

Left Hand

1шт.

23

345518A1

TUBE,9.5 mm OD, 170, 97.4 mm Length

1шт.

Rear Axle

1шт.

Right Hand

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

Incl. 25

1шт.

29

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

2шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
