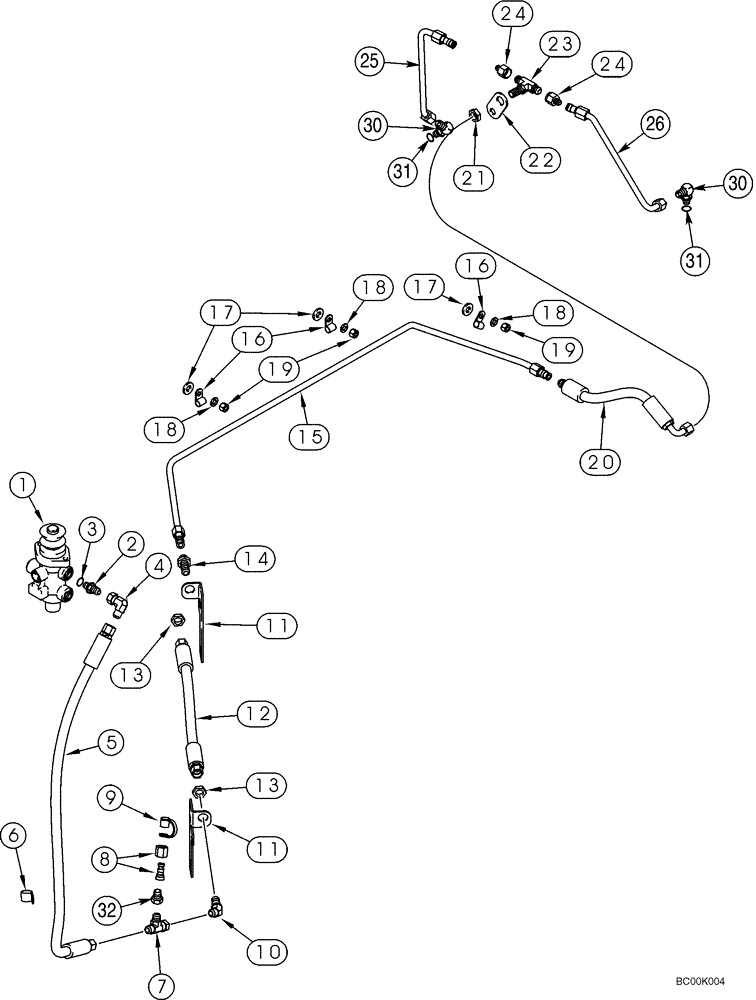

Запчасти Case 821C (07-07) - HYDRAULICS - BRAKE, MAIN (Dec 4 2009 3:35PM) (07) - BRAKES
№
Артикул
Название
Примечание
Количество
MAIN BRAKE VALVE TO FRONT AXLE
1шт.
1
331968A1
VALVE
See Figure 07-09; For Mounting, See Figure 07-02
1шт.
1
393885A2
VALVE, BRAKE
See Figure 07-09; For Mounting, See Figure 07-02; Replaces 331968A1
1шт.
2
218-5066
HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB
1шт.
Incl. 3
1шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
4
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
1шт.
5
339503A1
HOSE ASSY.
1075 mm (42-5/16 in)
1шт.
Front Brakes
1шт.
6
515-23254
CLAMP,1", Insul, 3/8" Bolt
1шт.
7
218-5220
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run
7/8 fl br x fl x sw
1шт.
Test Port
1шт.
8
192834A1
COUPLING
1шт.
9
H434163
DUST CAP
1шт.
10
218-716
ELBOW,45 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
1шт.
11
394275A1
BRACKET
2шт.
12
339528A1
HOSE ASSY.
467 mm (18-3/8 in)
1шт.
13
218-1251
BHD LOCK NUT,Blkhd, 7/8"-14
2шт.
14
218-675
FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
7/8 fl x blkhd fl
1шт.
15
339573A2
TUBE
1шт.
Front Brakes
1шт.
16
515-25159
CLAMP,5/8", Insul, 1/2" Bolt
3шт.
17
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13,5 x 28 x 4 mm
3шт.
18
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
11 x 21 x 2 mm
3шт.
19
832-10410
NUT,M10 x 1.5, Cl 8
3шт.
20
339576A1
HOSE ASSY.
322 mm (12-11/16 in)
1шт.
21
218-1251
BHD LOCK NUT,Blkhd, 7/8"-14
1шт.
22
339484A2
BRACKET
1шт.
Use Bolt From Front Axle To Mount
1шт.
23
218-806
TEE,7/8"-14, 37 Degree, Blkhd
1шт.
24
218-765
REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male
2шт.
25
339642A2
TUBE
1шт.
Left Hand
1шт.
26
339638A2
TUBE
1шт.
Right Hand
1шт.
30
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
9/16 fl x Or
2шт.
Incl. 31
1шт.
32
218-789
REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male
1шт.
31
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 39
