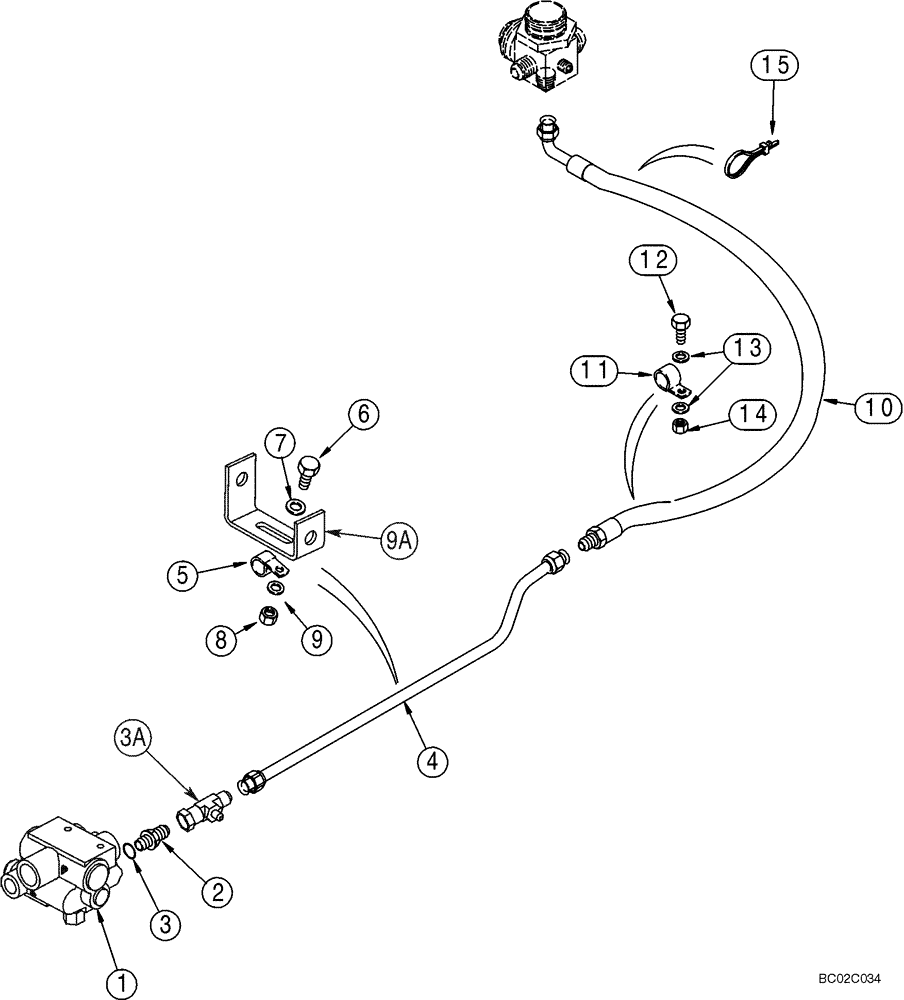

Запчасти Case 821C (07-05) - HYDRAULICS - BRAKE, MAIN (Dec 1 2008 3:56PM) (07) - BRAKES

ACCUMULATOR VALVE TO RETURN PORT ON ORIFICE VALVE BLOCK TUBE

1шт.

1

426168A1

VALVE

1шт.

Brake Accumulator Valve

1шт.

Accumulator Charging

1шт.

Component Parts Not Serviced Separately

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

Incl. 3

1шт.

For Auxiliary Steering

1шт.

See Figure 05-06

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3a

218-5484

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run x 7/16"-20

1шт.

4

434722A1

TUBE

1шт.

Brake Accumulator Charging Valve

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

9a

434723A1

BRACKET

1шт.

10

317920A1

HOSE ASSY.

1079 mm (42-1/2 in)

1шт.

Attaches to Bottom Port on 108748A1 Manifold

1шт.

11

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.
