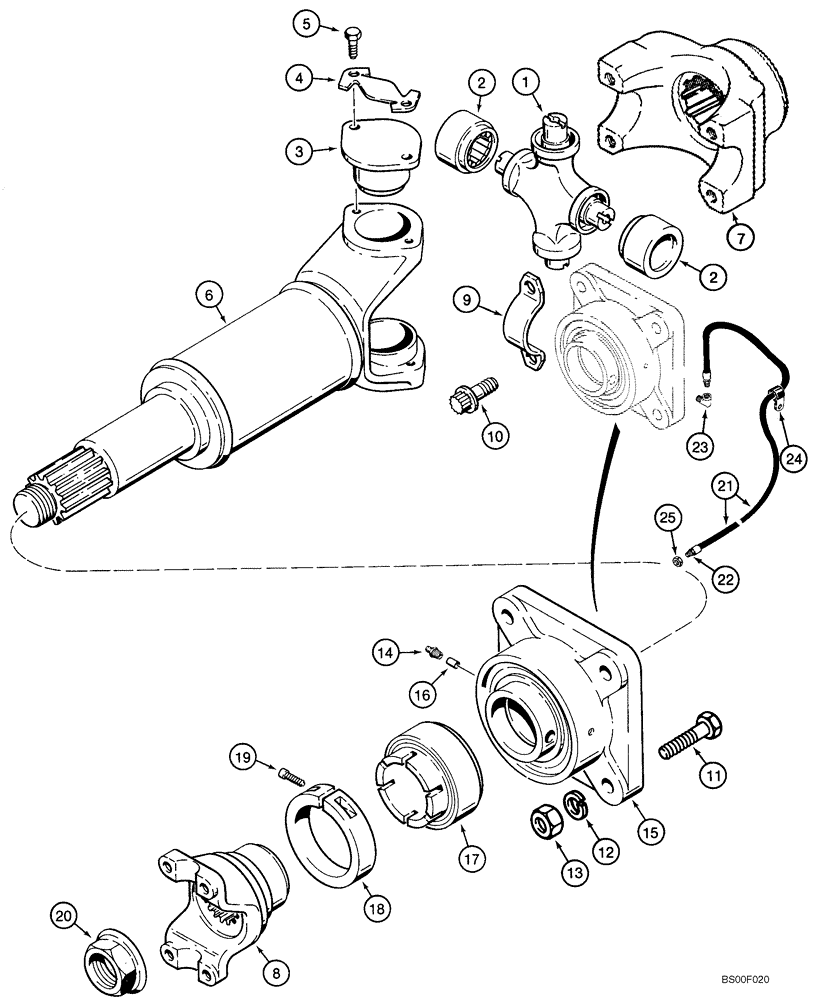

Запчасти Case 821C (06-25) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE (Dec 22 2009 4:25PM) (06) - POWER TRAIN

FRONT DRIVE SHAFT

1шт.

103713A2

DRIVE SHAFT

1шт.

Front Axle

1шт.

Incl. 120245A1, REF 1-6

1шт.

120245A1

SPIDER

1шт.

1

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

2

NSS

NOT SOLD SEPARAT

Race

2шт.

3

NSS

NOT SOLD SEPARAT

Cap

2шт.

4

S300317

SUPPORT

2шт.

Bearing Strap

1шт.

5

NSS

NOT SOLD SEPARAT

Screw

4шт.

6

S300352

HALF SHAFT

No longer available, order 103713A2

1шт.

7

373829A1

FLANGE

1шт.

Drive Shaft to Front Axle

1шт.

See Figure 06-21, REF 13

1шт.

8

L125184

YOKE

1шт.

Drive Shaft to Center Bearing

1шт.

9

L125187

SUPPORT

2шт.

Bearing To Flange

1шт.

10

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

4шт.

Bearing Strap

1шт.

DRIVE SHAFT SUPPORT BEARING

1шт.

11

426-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

4шт.

12

492-11056

LOCK WASHER,9/16"

4шт.

13

425-109

NUT,9/16"-12, G5

4шт.

L106070

FLANGED BEARING

1шт.

Front Drive Shaft Support

1шт.

Incl. 14-19

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

15

NSS

NOT SOLD SEPARAT

Housing

1шт.

16

L33788

AXLE PIN

1/4 in dia

1шт.

L33787

KIT

1шт.

Bearing And Collar

1шт.

Incl. 17-19

1шт.

17

NSS

NOT SOLD SEPARAT

Bearing, Support

1шт.

18

L33789

COLLAR

1шт.

19

61-32516

HEX SOC SCREW,1/4"-20 x 1"

1шт.

20

S300353

NUT

1шт.

Incl. With 103713A2

1шт.

LUBRICATION LINE

1шт.

21

L54693

HOSE

686 mm (21 in)

1шт.

Incl. 22

1шт.

22

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

23

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

24

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

25

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.
