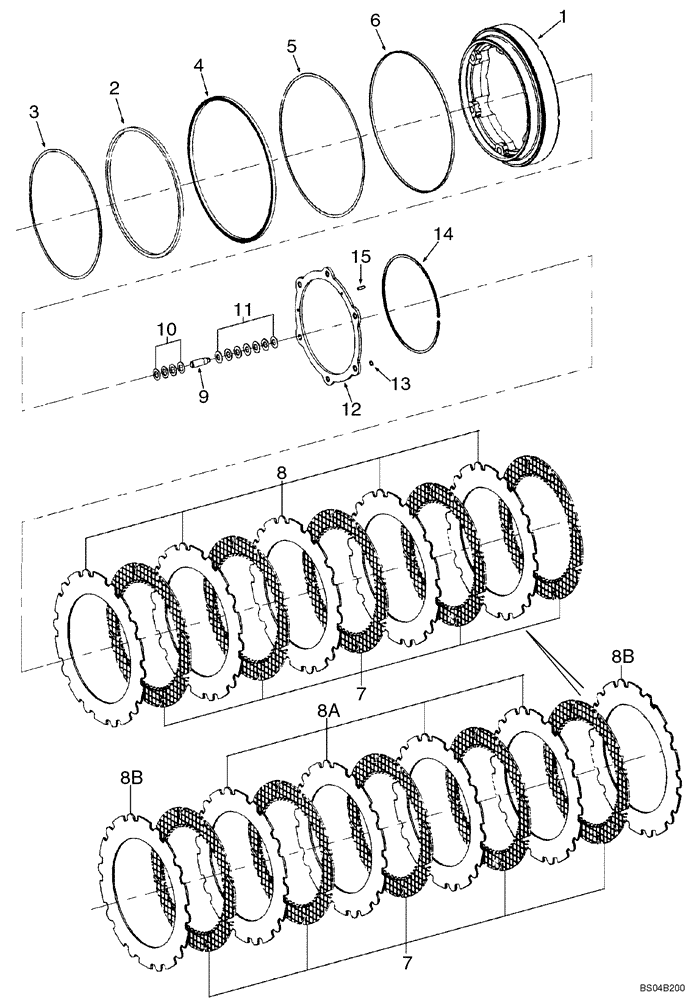

Запчасти Case 821C (06-24) - AXLE, REAR - HUB, DISC BRAKES (06) - POWER TRAIN

293103A2

AXLE

Rear, With Limited Slip; Includes Figure 06-22 - 06-24A

1шт.

87313935

REAR AXLE

Rear, With Limited Slip; Includes Figure 06-22 - 06-24A; Oil Filled; Components Same As 293103A2

1шт.

87358593

REAR AXLE

REAR, With Limited Slip; ZF No. 4474 052 079; See Figure 06-22 - 06-24A; Oil Filled; Components Same As 87313935 Except Wheel End/A And Brake Disc

1шт.

87441327

END ASSY.

Incl. Ref 1 - 15; Includes Figure 06-24A; Also Includes Ref 25 Shaft Shims on Figure 06-22

2шт.

87358692

END ASSY.

Incl. Ref 1 - 15; Includes Figure 06-24A; Also Includes Ref 25 Shaft Shims on Figure 06-22; Replaces 87441326

2шт.

1

8603165

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

Piston Seal Support; Replaces 384317A1

1шт.

4

8605315

SEAL

U-Ring

1шт.

5

8603579

RING

Piston Seal Support; Replaces 384319A1

1шт.

6

8603580

SNAP RING

Brake Piston Guide; Replaces 384321A1

1шт.

87365253

REPAIR KIT

Standard Brake Pack; Incl. Refs. 7, 8A, 8B

1шт.

87475309

REPAIR KIT

Bronze Brake Upgrade, Rear Axle; Incl. Refs. 1 - 5, 8A, 12, 15, (12) 8603163 Adjuster Pins, (12) 87521419 2.4 mm Separator Plates, (4) 87588632 Damper Plates, and (10) 878521418 Bronze Brake Discs; Not Illustrated

1шт.

87475311

REPAIR KIT

Bronze Brake Upgrade, Rear Axle; Incl. (2) 8603582 Brake Plate Separators, (12) 8603163 Adjuster Pins, (12) 87521419 2.4 mm Separator Plates, (4) 87588632 Damper Plates, and (10) 878521418 Bronze Brake Discs; Not Illustrated

1шт.

87482111

REPAIR KIT

Bronze Brake Upgrade, Rear Axle; Incl. (12) 8603163 Adjuster Pins, (12) 87521419 2.4 mm Separator Plates, (2) 87588632 Damper Plates, and (10) 878521418 Bronze Brake Discs; Not Illustrated

1шт.

7

87341835

BRAKE DISC

Replaces 8603581

5шт.

8

384323A1

BRAKE PLATE

Outer; Used In (5) Plate Brake Assy; If Used

5шт.

8a

8603582

BRAKE PLATE

Used With Ref 8B In (6) Plate Brake Assy; If Used

4шт.

8b

87441328

PLATE,2mm Thk

Used With Ref 8A In (6) Plate Brake Assy; If Used

2шт.

9

8603164

PIN

6шт.

10

384325A1

RING

24шт.

11

384326A1

BELLEVILLE WASHER

Belleville

42шт.

12

8603162

SHIM

1шт.

13

87408035

SNAP RING

6шт.

14

384328A1

RING, SNAP

RING SNAP

1шт.

15

838-5620

LOCK PIN,M6 x 20, Slotted

3шт.
