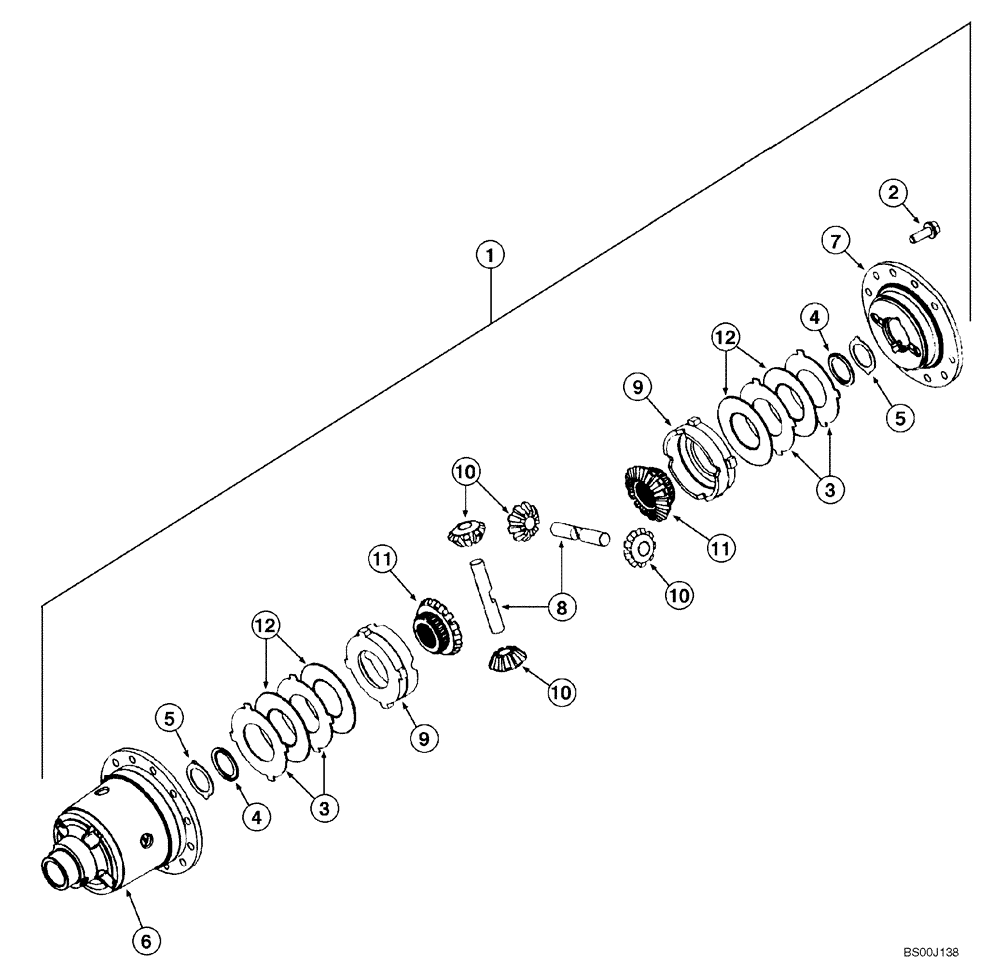

Запчасти Case 821C (06-23A) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN

293103A2

AXLE

Rear, With Limited Slip; Includes Figure 06-22 - 06-24A

1шт.

87313935

REAR AXLE

Rear, With Limited Slip; Includes Figure 06-22 - 06-24A; Oil Filled; Components Same As 293103A2

1шт.

87358593

REAR AXLE

REAR, With Limited Slip; ZF No. 4474 052 079; See Figure 06-22 - 06-24A; Oil Filled; Components Same As 87313935 Except Wheel End/A And Brake Disc

1шт.

384422A1

AXLE DIFFERENTIAL

Limited Slip; Includes 385371A1 Limited Slip Differential, Ref 1 - 12; Also Includes Figure 06-23

1шт.

384422A1R

REMAN-AXLE DIF w/LTD

REMAN-AXLE DIFF, w/LTD SLIP REMANUFACTURED REAR AXLE DIFFERENTIAL - NA Only

1шт.

384422A1C

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, REAR AXLE DIFFERENTIAL - NA Only

1шт.

1

385371A1

DIFFERENTIAL ASSY

Limited Slip; Incl. Ref 2 - 12

1шт.

2

184725A1

BOLT

M16 x 45

12шт.

3

384388A1

CLUTCH DISC

CLUTCH DISK 2,9 mm; Outer Clutch

4шт.

3

384389A1

CLUTCH DISC

CLUTCH DISK 3,0 mm; Outer Clutch

4шт.

3

384390A1

CLUTCH DISC

CLUTCH DISK 3,1 mm; Outer Clutch

4шт.

4

384392A1

THRUST WASHER

2шт.

5

384393A1

SHIM

2шт.

6

384394A1

AXLE DIFFERENTIAL

HOUSING

1шт.

7

384395A1

COVER

1шт.

8

384396A1

SHAFT

Pinion

2шт.

9

384397A1

RING

Pressure

2шт.

10

A52037

GEAR WHEEL

Pinion

4шт.

11

384399A1

GEAR

Side

2шт.

12

A52023

PLATE

Inner Clutch

4шт.
