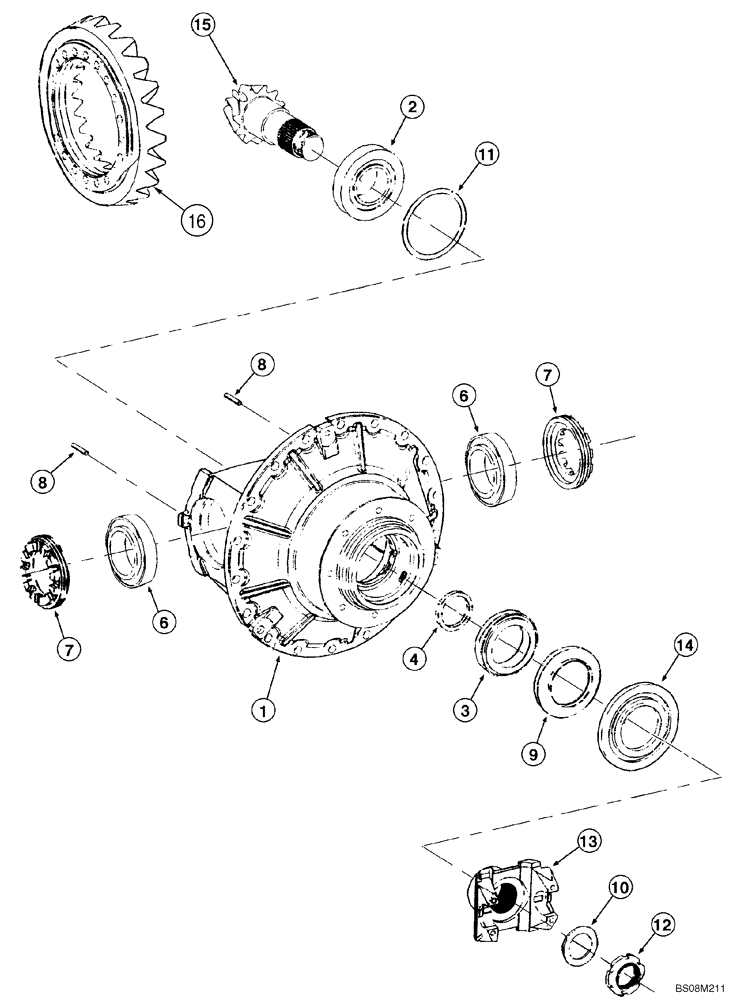

Запчасти Case 821C (06-21) - AXLE, FRONT - DIFFERENTIAL CARRIER (06) - POWER TRAIN

293102A2

AXLE

Front, With Limited Slip; Includes Figure 06-19 - 06-21A

1шт.

87313934

FRONT AXLE

Front, With Limited Slip; Includes Figures 06-19 - 06-21A; Oil Filled; Components Same As 293102A2

1шт.

87358592

FRONT AXLE

FRONT, With Limited Slip; ZF No. 4474 053 050; See Figure 06-19 - 06-21A; Oil Filled; Components Same As 87313934 Except Wheel End/A And Brake Disc

1шт.

384429A1

DIFFERENTIAL

Incl. Ref 1 - 16; Also Includes 384473A1 Limited Slip Differential On Figure 06-21A

1шт.

384429A1R

REMAN-AXLE DIF w/LTD

REMAN-AXLE DIFF, w/LTD SLIP REMANUFACTUREDFRONT AXLE DIFFERENTIAL - NA Only

1шт.

384429A1C

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, FRONT AXLE DIFFERENTIAL - NA Only

1шт.

1

384431A1

HOUSING

1шт.

2

81970C1

ROLLER BEARING

Front

1шт.

3

119979A1

ROLLER BEARING,60mm ID x 125mm OD x 37mm W

Rear

1шт.

4

119962A1

RING

7,3 mm

1шт.

4

119963A1

SPACER

7,4 mm

1шт.

4

119964A1

SPACER

7,5 mm

1шт.

4

119965A1

SPACER

7,6 mm

1шт.

4

119966A1

SPACER

7,7 mm

1шт.

4

119967A1

SPACER

7,9 mm

1шт.

4

119968A1

SPACER

8,0 mm

1шт.

4

119969A1

SNAP RING

8,1 mm

1шт.

4

119970A1

SPACER

8,2 mm

1шт.

4

119971A1

RING, SNAP

RING SNAP 8,3 mm

1шт.

4

119972A1

SPACER

8,4 mm

1шт.

4

119973A1

SPACER

8,5 mm

1шт.

4

119974A1

SPACER

8,6 mm

1шт.

4

119975A1

SPACER

8,7 mm

1шт.

4

119976A1

SPACER

8,8 mm

1шт.

4

119977A1

SHIM

8,9 mm

1шт.

4

119978A1

SPACER

9,0 mm

1шт.

4

384436A1

SPACER,7.8mm Thk

7,8 mm

1шт.

4

384438A1

SPACER,7.82mm Thk

7,82 mm

1шт.

4

384439A1

SPACER,7.84mm Thk

7,84 mm

1шт.

4

384440A1

SPACER,7.86mm Thk

7,86mm

1шт.

4

384441A1

SPACER,7.88mm Thk

7,88 mm

1шт.

4

384443A1

SPACER,7.92mm Thk

7,92 mm

1шт.

4

384444A1

SPACER,7.94mm Thk

7,94 mm

1шт.

4

384446A1

SPACER,7.96mm Thk

7,96 mm

1шт.

4

384447A1

SPACER,7.98mm Thk

7,98 mm

1шт.

4

384448A1

SPACER,8.02mm Thk

8,02 mm

1шт.

4

384449A1

SPACER,8.04mm Thk

8,04 mm

1шт.

4

384450A1

SPACER,8.06mm Thk

8,06 mm

1шт.

4

384451A1

SPACER,8.08mm Thk

8,08 mm

1шт.

4

384452A1

SPACER,8.12mm Thk

8,12 mm

1шт.

4

384454A1

SPACER,8.14mm Thk

8,14 mm

1шт.

4

384455A1

SPACER,8.16mm Thk

8,16mm

1шт.

4

384457A1

SPACER,8.18mm Thk

8,18 mm

1шт.

6

119961A1

BEARING, ROLLER,82.55mm ID x 133.35mm OD x 33.69mm W

2шт.

7

A48725

NUT

2шт.

8

838-5845

LOCK PIN,M8 x 45, Slotted

2шт.

9

373828A1

SEAL,90mm ID x 140mm OD x 12mm Thk

1шт.

10

119981A1

THRUST WASHER,51mm ID x 76.5mm OD x 5mm Thk

1шт.

11

119225A1

SHIM

0,7 mm

1шт.

11

119226A1

BLOCK

0,8 mm

1шт.

11

119227A1

BLOCK

0,9 mm

1шт.

11

119228A1

BLOCK

1,0 mm

1шт.

11

119229A1

BLOCK

1,1 mm

1шт.

11

119230A1

BLOCK

1,2 mm

1шт.

11

119231A1

BLOCK

1,3 mm

1шт.

11

119233A1

BLOCK

1,4 mm

1шт.

11

119293A1

BLOCK

1,5 mm

1шт.

12

119984A1

SLOTTED NUT

1шт.

13

373829A1

FLANGE

Input

1шт.

14

373830A1

DUST CAP

1шт.

384472A1

BEVEL GEAR

Incl. Ref 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Shaft

1шт.

16

NSS

NOT SOLD SEPARAT

Gear

1шт.
