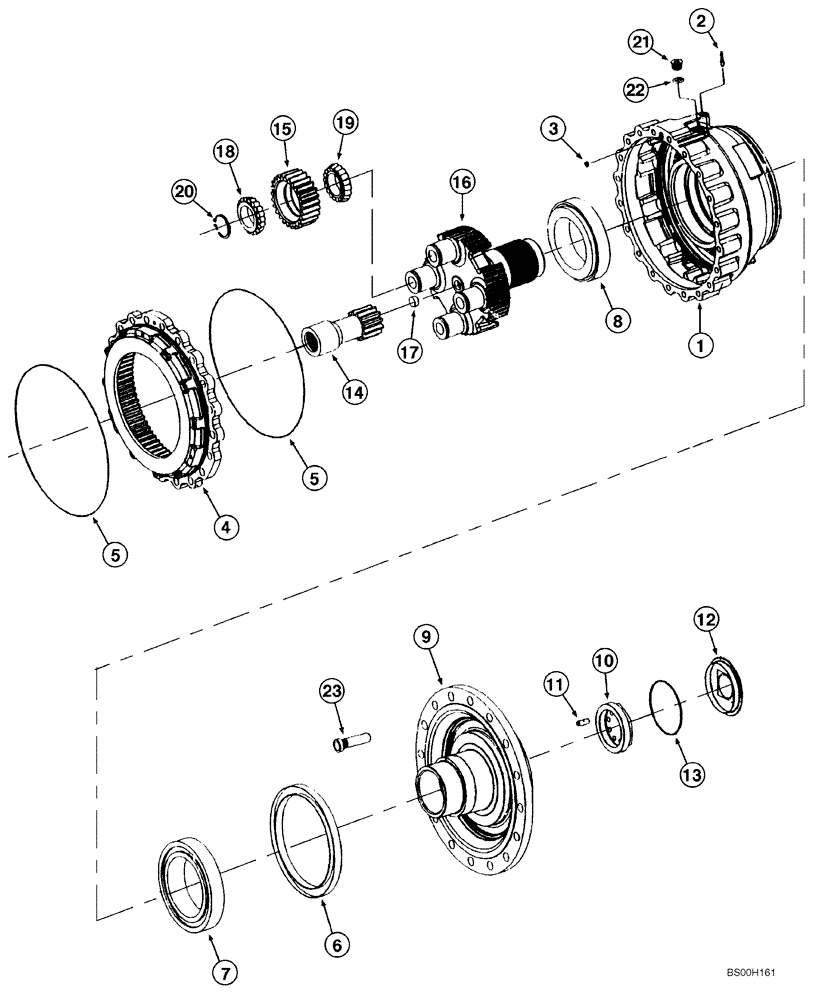

Запчасти Case 821C (06-20A) - AXLE, FRONT - HUB, PLANETARY (06) - POWER TRAIN

293102A2

AXLE

Front, With Limited Slip; Includes Figures 06-19 - 06-21A

1шт.

87313934

FRONT AXLE

Front, With Limited Slip; Includes Figures 06-19 - 06-21A; Oil Filled; Components Same As 293102A2

1шт.

87358592

FRONT AXLE

FRONT, With Limited Slip; ZF No. 4474 053 050; See Figure 06-19 - 06-21A; Oil Filled; Components Same As 87313934 Except Wheel End/A And Brake Disc

1шт.

87441325

END ASSY.

Incl. Ref 1 - 23; Includes Figure 06-20; Also Includes Ref 25 Shaft Shims On Figure 06-19; Replaces 437375A2 End Assy

2шт.

87358689

END ASSY.

Incl. Ref 1 - 15; Includes Figure 06-20A; Also Includes Ref 25 Shaft Shims On Figure 06-19; Replaces 87441325 End Assy

2шт.

437375A2R

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE

2шт.

437375A2C

CORE-WHEEL END ASSY

Return Number

2шт.

1

87437912

HOUSING

1шт.

2

8603673

PLUG

437375A2 End Assy; If Used

1шт.

3

384294A1

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

1шт.

4

8603610

GEAR

1шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

384969A1

TAPERED BEARING

1шт.

8

384298A1

TAPERED BEARING

1шт.

9

384971A1

FLANGE

Output

1шт.

10

384540A1

NUT

1шт.

11

384302A1

PIN

1шт.

12

384303A1

COVER

1шт.

13

331982A1

O-RING

1шт.

14

384416A1

GEAR

Shaft

1шт.

15

384417A1

GEAR

Planetary

4шт.

16

87437911

CARRIER,Planetary Gear

Planetary

1шт.

17

384309A1

BOLT

1шт.

18

384419A1

ROLLER BEARING

Inner

4шт.

19

384420A1

ROLLER BEARING

Inner

4шт.

20

898183H1

RETAINER

4шт.

21

384313A1

PLUG

Brake Port

1шт.

22

A52097

O-RING,2mm Thk x 21mm ID

1шт.

23

120098A1

WHEEL BOLT

16шт.
