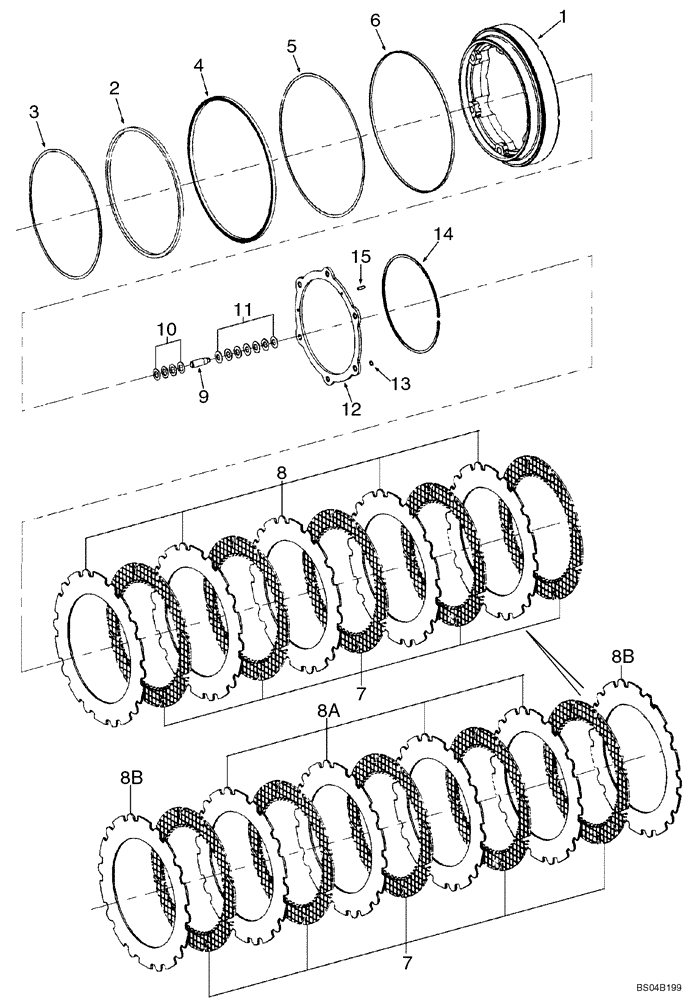

Запчасти Case 821C (06-20) - AXLE, FRONT - HUB, DISC BRAKES (06) - POWER TRAIN

293102A2

AXLE

Front, With Limited Slip; Includes Figures 06-19 - 06-21A

1шт.

87313934

FRONT AXLE

Front, With Limited Slip; Includes Figures 06-19 - 06-21A; Oil Filled; Components Same As 293102A2

1шт.

87358592

FRONT AXLE

FRONT, With Limited Slip; ZF No. 4474 053 050; See Figure 06-19 - 06-21A; Oil Filled; Components Same As 87313934 Except Wheel End/A And Brake Disc

1шт.

87441325

END ASSY.

Incl. Ref 1 - 15; Includes Figure 06-20A; Also Includes Ref 25 Shaft Shims On Figure 06-19; Replaces 437375A2 End Assy

2шт.

87358689

END ASSY.

Incl. Ref 1 - 15; Includes Figure 06-20A; Also Includes Ref 25 Shaft Shims On Figure 06-19; Replaces 87441325 End Assy

2шт.

437375A2R

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE

2шт.

437375A2C

CORE-WHEEL END ASSY

Return Number

2шт.

1

8603165

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

Piston Seal Support; Repalces 384317A1

1шт.

4

8605315

SEAL

U-Ring

1шт.

5

8603579

RING

Piston Seal Support; Replaces 384319A1

1шт.

6

8603580

SNAP RING

Brake Piston Guide; Replaces 384321A1

1шт.

87365253

REPAIR KIT

Standard Brake Pack; Incl. Refs. 7, 8A, 8B

1шт.

87475308

REPAIR KIT

Bronze Brake Upgrade, Front Axle; Incl. Refs. 1 - 5, 8A, (12) 8603163 Adjuster Pins, (14) 87521419 2.4 mm Separator Plates, and (10) 878521418 Bronze Brake Discs; Not Illustrated

1шт.

87475312

REPAIR KIT

Bronze Brake Upgrade, Front Axle; Incl. (2) 8603582 Brake Plate Separators, (12) 8603163 Adjuster Pins, (14) 87521419 2.4 mm Separator Plates, and (10) 878521418 Bronze Brake Discs; Not Illustrated

1шт.

87482112

REPAIR KIT

Bronze Brake Upgrade, Front Axle; Incl. (12) 8603163 Adjuster Pins, (14) 87521419 2.4 mm Separator Plates, (2) 87588632 Damper Plates, and (12) 878521418 Bronze Brake Discs; Not Illustrated

1шт.

7

87341835

BRAKE DISC

Replaces 8603581

5шт.

8

384323A1

BRAKE PLATE

Outer; Used In (5) Plate Brake Assy; If Used, Refer to S/B NWL SB 001 06

5шт.

8a

NSS

NOT SOLD SEPARAT

Used With Ref 8B In (6) Plate Brake Assy; If Used Must Order Kit 87365251

4шт.

8b

NSS

NOT SOLD SEPARAT

Used With Ref 8A In (6) Plate Brake Assy; If Used Must Order Kit 87365251

2шт.

9

8603164

PIN

6шт.

10

384325A1

RING

24шт.

11

384326A1

BELLEVILLE WASHER

Belleville

42шт.

12

8603162

SHIM

1шт.

13

87408035

SNAP RING

10 x 1 mm

6шт.

14

384328A1

RING, SNAP

RING SNAP

1шт.

15

838-5620

LOCK PIN,M6 x 20, Slotted

3шт.
