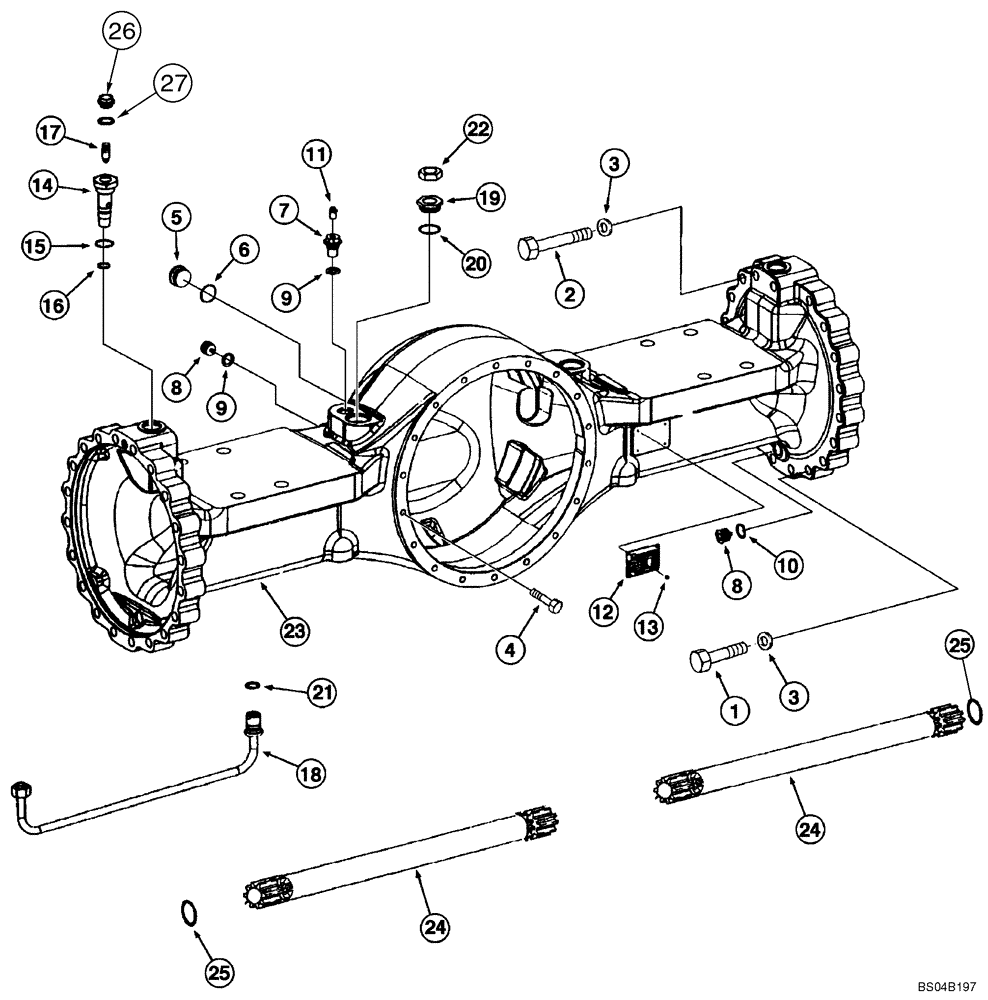

Запчасти Case 821C (06-19) - AXLE, FRONT - HOUSING (06) - POWER TRAIN

293102A2

AXLE

Front; With Limited Slip; Includes Figure 06-19 - 06-21A

1шт.

87313934

FRONT AXLE

Front; With Limited Slip; Includes Figure 06-19 - 06-21A; Oil Filled; Components Same As 293102A2

1шт.

1

87358592

FRONT AXLE

FRONT, With Limited Slip; ZF No. 4474 053 050; See Figure 06-19 - 06-21A; Oil Filled; Components Same As 87313934 Except Wheel End/A And Brake Disc

1шт.

1

384402A1

BOLT

M18 x 95

36шт.

2

384403A1

BOLT

M18 x 140

4шт.

3

A48928

WASHER

40шт.

4

A52094

FLANGE BOLT

Differential To Axle Housing

18шт.

5

384280A1

PLUG

Oil Level

2шт.

6

81284C1

O-RING,2.2mm Thk x 33mm ID

2шт.

7

8603256

PLUG

Axle Housing

1шт.

8

384281A1

PLUG

Center Oil Drain

3шт.

9

A52097

O-RING,2mm Thk x 21mm ID

2шт.

10

A52097

O-RING,2mm Thk x 21mm ID

2шт.

11

A48855

VALVE

Breather

1шт.

12

NSS

NOT SOLD SEPARAT

Plate

1шт.

13

932658R1

GROOVED PIN,Rd Hd, M3 x 5

4шт.

14

384282A1

FITTING

Bleeder Valve

2шт.

15

81284C1

O-RING,2.2mm Thk x 33mm ID

2шт.

16

384283A1

FITTING

Ring

2шт.

17

3222214R1

VALVE

Bleeder

2шт.

18

87436739

TUBE

Replaces 8605316 Tube

2шт.

19

8603696

FITTING

2шт.

20

A52096

O-RING,2.5mm Thk x 38mm ID

2шт.

21

716582R1

O-RING

2шт.

22

8603619

TUBE NUT

2шт.

23

384476A1

AXLE

HOUSING

1шт.

24

384477A1

AXLE SHAFT

2шт.

25

8605309

SHIM,0.60mm Thk

Included in 87441325 End Assy; See Figure 06-20, 06-20A

1шт.

25

8605310

SHIM,1.00mm Thk

Included in 87441325 End Assy; See Figure 06-20, 06-20A

1шт.

25

8605311

SHIM,1.60mm Thk

Included in 87441325 End Assy; See Figure 06-20, 06-20A

1шт.

25

8605312

SHIM,2.00mm Thk

Included in 87441325 End Assy; See Figure 06-20, 06-20A

1шт.

25

8605313

SHIM,2.50mm Thk

Axle Shaft, Included in 87441325 End Assy; See Figure 06-20, 06-20A

1шт.

26

8603210

PLUG

Screw

2шт.

27

8603799

RING

Seal

2шт.
