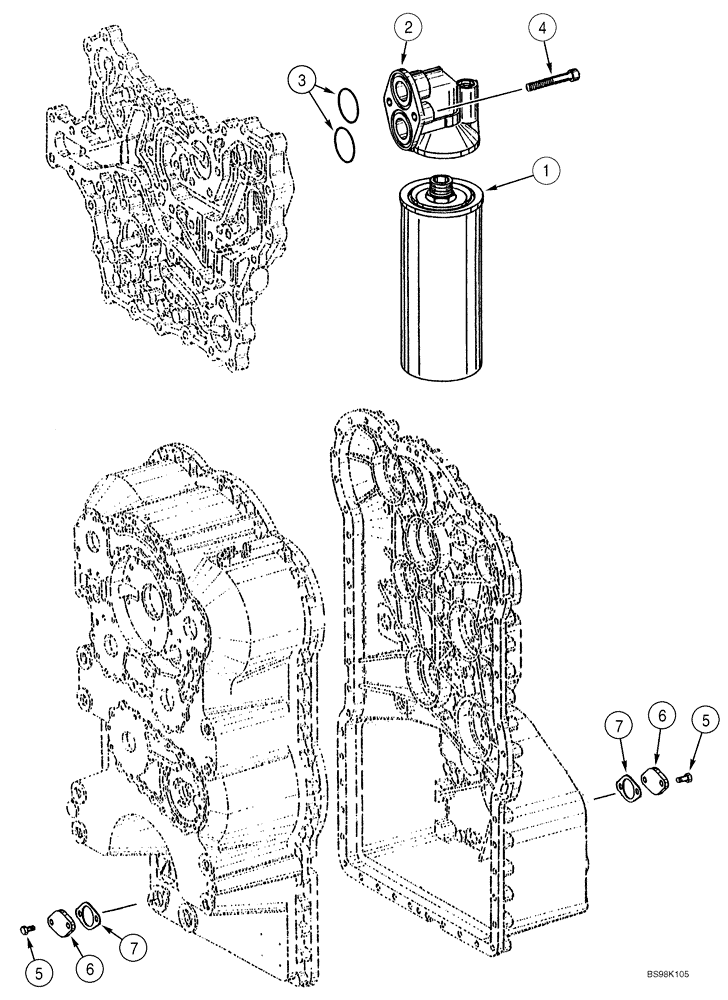

Запчасти Case 821C (06-17) - TRANSMISSION - FILTER, OIL AND FILLER COVER (06) - POWER TRAIN

196174A1

GEARBOX

See Figure 06-01 - 06-17, 07-01

1шт.

196174A1R

REMAN-TRANSMISSION

821C CASE WHEEL LOADER (S/N JEE0155001 & AFTER)

1шт.

196174A1C

CORE-TRANSMISSION

Return Number

1шт.

1

87519452

HYDRAULIC OIL FILTER

Replaces 332202A1; Has Increased Burst Pressure And Change Interval

1шт.

2

331347A1

FILTER COVER

1шт.

3

87712670

O-RING

Replaces 331348A1

2шт.

4

330811A1

CAPSCREW,Flg, 5/16" - 18 x 5 1/2", Gr 8

2шт.

5

331309A1

CAPSCREW,M8 x 18mm

M8 x 18

4шт.

6

S300508

COVER

2шт.

7

237302A1

GASKET

2шт.
