Запчасти Case 821C (06-16A) - TRANSMISSION - VALVE, CONTROL (06) - POWER TRAIN

*

196174A1

GEARBOX

1шт.

*

See Figure 06-01 - 06-17, 07-01

1шт.

*

196174A1R

REMAN-TRANSMISSION

Reman for new P/N 196174A1

1шт.

*

196174A1C

CORE-TRANSMISSION

Return number

1шт.

*

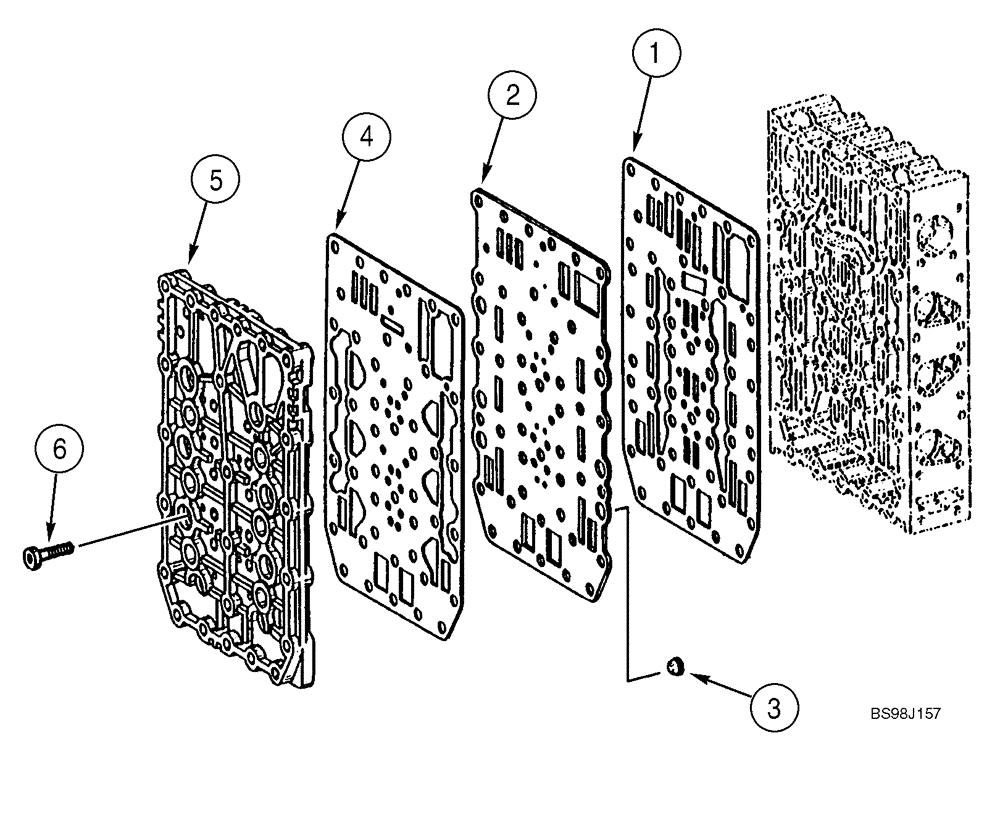

331759A1

SHIFTING UNIT

1шт.

*

Incl. 1-6

1шт.

*

Also Incl. Figure 06-16A

1шт.

1

331013A1

GASKET

1шт.

2

330965A1

LARGE PLATE

PLATE, LARGE

1шт.

3

330966A1

SCREEN

6шт.

4

330967A1

GASKET

1шт.

5

330968A1

LARGE PLATE

PLATE, LARGE

1шт.

6

330969A1

SCREW

18шт.
