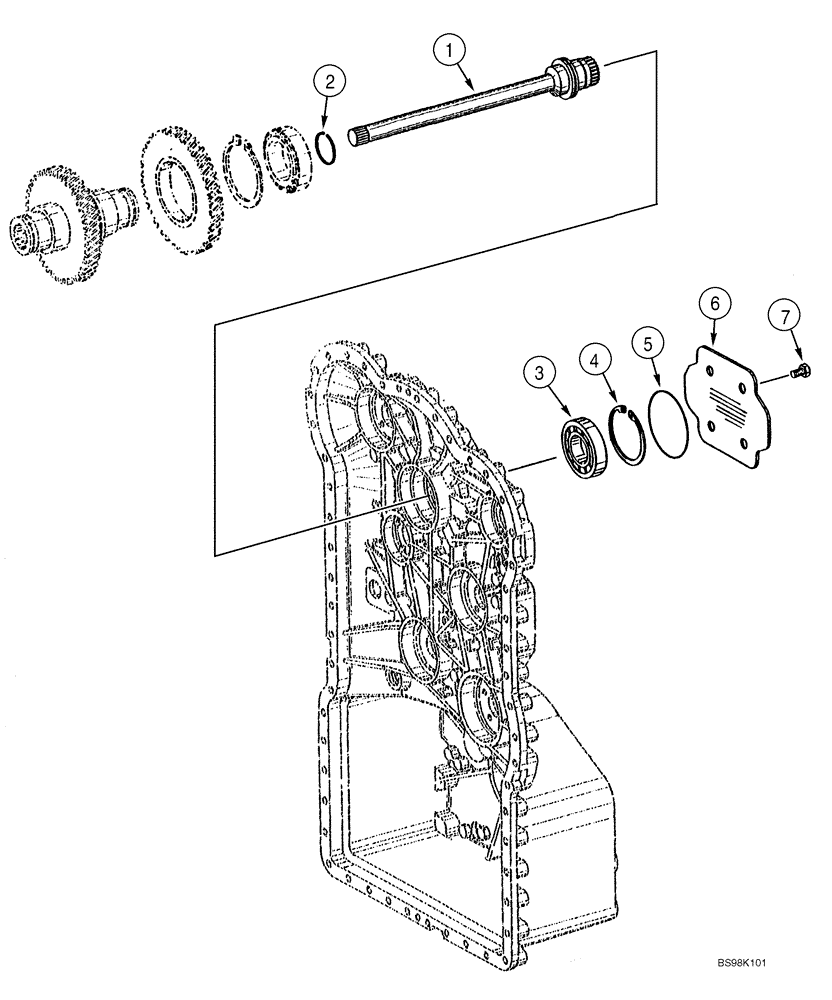

Запчасти Case 821C (06-14) - TRANSMISSION - POWER TAKE OFF (Sep 29 2010 9:50AM) (06) - POWER TRAIN

*

196174A1

GEARBOX

1шт.

*

See Figure 06-01 - 06-17, 07-01

1шт.

*

196174A1R

REMAN-TRANSMISSION

821C CASE WHEEL LOADER (S/N JEE0155001 & AFTER)

1шт.

*

196174A1C

CORE-TRANSMISSION

Return Number

1шт.

1

331980A1

SHAFT

1шт.

*

Pump

1шт.

2

330798A1

RING

1шт.

3

330916A1

BEARING, BALL

1шт.

4

330917A1

RING, SNAP

RING SNAP

1шт.

5

334730A1

O-RING

1шт.

6

331981A1

COVER

1шт.

7

330788A1

SCREW

M12 x 18

4шт.
