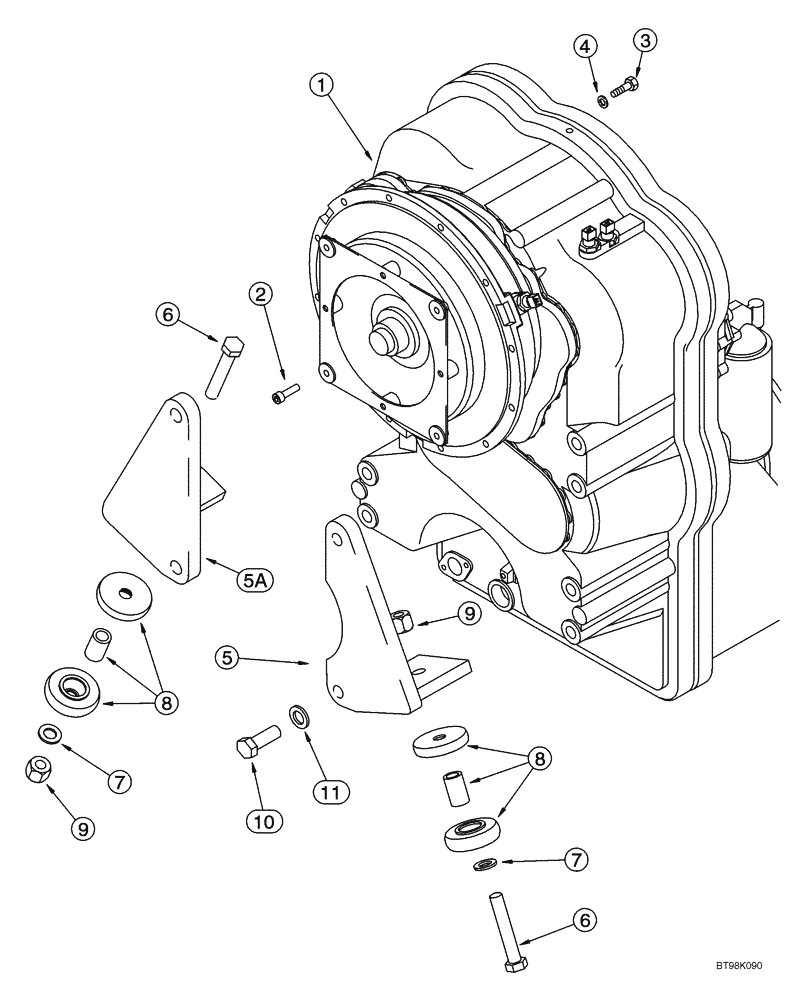

Запчасти Case 821C (06-02) - MOUNTING - TRANSMISSION (Sep 29 2010 9:38AM) (06) - POWER TRAIN

1

196174A1

GEARBOX

ZF No 4657 054 015

1шт.

*

See Figure 06-01 - 06-17, 07-01

1шт.

1

196174A1R

REMAN-TRANSMISSION

821C CASE WHEEL LOADER (S/N JEE0155001 & AFTER)

1шт.

1

196174A1C

CORE-TRANSMISSION

Return Number

1шт.

2

L125431

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 8.8

M10 x 35

4шт.

3

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

12шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

12шт.

5

298372A1

SUPPORT

1шт.

*

Right Hand

1шт.

5a

298370A1

SUPPORT

1шт.

*

Left Hand

1шт.

6

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

2шт.

8

L111929

SHOCK ABSORBER

2шт.

9

131-1400

LOCK NUT,Jam, 3/4"-16

2шт.

10

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

4шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.
