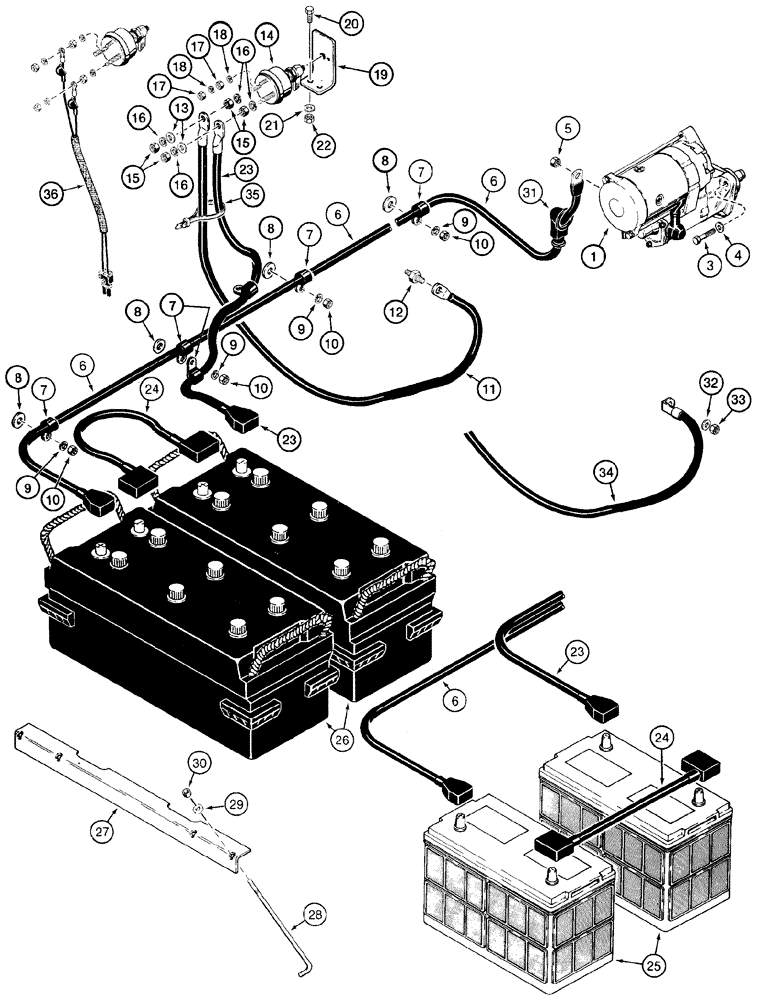

Запчасти Case 821C (04-18) - BATTERY CABLES (04) - ELECTRICAL SYSTEMS

.

All Models -JEE0126215

1шт.

1

223900A1

STARTING MOTOR

See Page(s) 4-5, 4-7

1шт.

1

223900A2R

REMAN-STARTER,24V, 7.5kW

Remanufactured Starting Motor

1шт.

1

223900A2C

CORE-STARTER,24V, 7.5kW

Return Part Number, Starting Motor

1шт.

3

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3шт.

4

R24323

WASHER

3шт.

5

825-1410

NUT,M10, Cl 8

1шт.

6

284522A1

CABLE ASSY.

2100 mm (82-11/16 in), Battery To Starter, Positive Terminal

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Battery Cable

7-8шт.

8

S95569

WASHER

Hardened

4-5шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4-5шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

11

284524A1

CABLE ASSY.

500 mm (19-11/16 in), Ground, Disconnect Switch

1шт.

12

L127553

STUD

1шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

L126256

SWITCH

Disconnect, Consists Of 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

Body

1шт.

15

129-187

NUT,5/16"-24, Brass

6шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

131-573

NUT,#10-32

4шт.

18

492-11010

LOCK WASHER,#10

4шт.

19

181415A1

SUPPORT

Disconnect Switch

1шт.

20

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Replaces 627-10030

2шт.

.

All Models -JEE0126215

1шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

23

284523A1

CABLE ASSY.

1400 mm(55-1/8 in), Negative, Disconnect Switch

1шт.

24

239952A1

CABLE ASSY.

400 mm (15-3/4 in), Jumper, Battery To Battery

1шт.

25

BMF31E

DRY BATTERY

12V, Standard, service replacement

2шт.

26

BHC4DA

BATTERY, DRY

BATTERY DRY , 12V, Heavy Duty, Service Replacement

2шт.

27

L124221

SUPPORT

Hold Down

2шт.

28

L124224

BOLT

Hold Down

4шт.

29

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

30

231-1445

NUT,5/16"-18, GB

4шт.

31

L126713

BOOT

Cable At Starter, Cable At Disconnect

3шт.

32

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

33

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

1шт.

34

239955A1

CABLE ASSY.

1080 mm (42-1/2 in), Ground, Engine To frame

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in, Retaining

1шт.

36

L127676

WIRE HARNESS

Disconnect Switch

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
