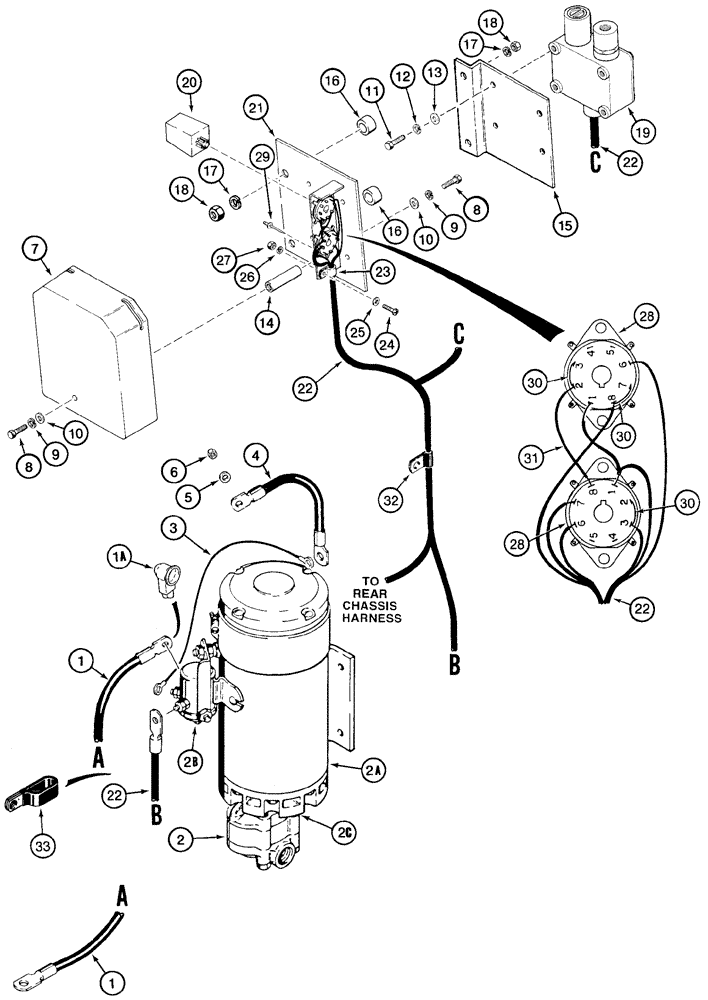

Запчасти Case 821C (04-17) - ELECTRICAL STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS

North America Only

1шт.

1

120864A1

CABLE ASSY.

Auxiliary Steering

1шт.

1a

L126713

BOOT

1шт.

197540A1

PUMP, HYDRAULIC

Auxiliary Steering, Consists Of 2 - 3

1шт.

2

258041A1

PUMP, HYDRAULIC

1шт.

2a

258042A1

MOTOR, ELECTRIC

1шт.

2b

258043A1

SOLENOID SWITCH

24V

1шт.

2c

258044A1

GASKET

1шт.

2d

258045A1

SEAL KIT

Steering Pump, Not Shown

1шт.

3

NSS

NOT SOLD SEPARAT

Wire

1шт.

4

L129707

NEG BATTERY CABLE

Ground

1шт.

5

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

6

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5

1шт.

7

L114612

COVER

1шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

9

892-11006

LOCK WASHER,M6

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

4шт.

12

492-11025

LOCK WASHER,1/4"

4шт.

13

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

14

253065A1

SPACER

1шт.

15

243564A1

BRACKET

Pressure Switch

1шт.

16

D44696

BUSHING

2шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

19

L126826

IGNITION SWITCH

Auxiliary Steering

1шт.

20

L113460

RELAY,24V

Auxiliary Steering

2шт.

291910A1

Relay, Consists Of 21 - 31

1шт.

21

NSS

NOT SOLD SEPARAT

Bracket

1шт.

22

284512A1

HARNESS

1шт.

23

L73526

CLAMP

Harness

1шт.

24

140-104

SCREW,Cross Pan Hd, #8 - 32 x 3/4"

1шт.

25

495-21019

WASHER,#8

1шт.

26

492-11008

LOCK WASHER,#8

1шт.

27

225-14108

NUT,#8-32

1шт.

28

L57132

SOCKET

2шт.

29

151-526

RIVET,Pop, 1/8" x .337"

1/8 x 9/32

4шт.

30

L70845

ELECTRICAL WIRE

WIRE

3шт.

31

NSS

NOT SOLD SEPARAT

Wire

2шт.

32

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

33

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

2шт.
