Запчасти Case 821C (04-13) - HARNESS, REAR (04) - ELECTRICAL SYSTEMS

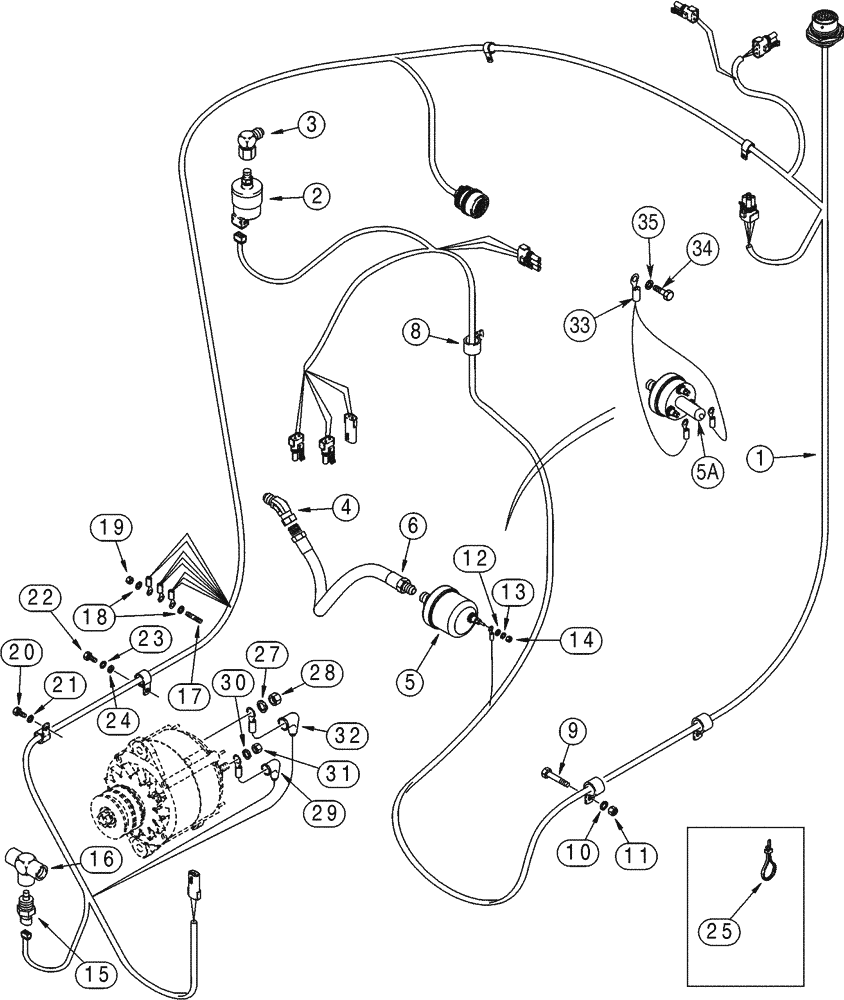

Схема запчастей Case 821C - (04-13) - HARNESS, REAR (04) - ELECTRICAL SYSTEMS
22
13
9
33
5a
16
20
27
18
25
23
1
34
3
6
15
32
10
8
30
31
5
28
11
4
14
21
12
2
17
19
35
24
29

Артикул

Название

Примечание

Количество

Engine and Transmission

1шт.

All Models -JEE0126215

1шт.

1

296748A5

HARNESS

Engine and Transmission, Replaces 296748A3, 296748A4

1шт.

2

293797A1

RESTRICTION SWITCH

Air Cleaner

1шт.

3

217-1050

90 ELBOW,1/8" - 27 NPTF Female

1шт.

4

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

5

358040A2

SENDER UNIT

SENDER , Engine Oil Pressure, Replaces 253041A1, 358040A1, No Longer Available, Order 404224A1

1шт.

5a

404224A1

SENDER UNIT

SENDER , Engine Oil Pressure

1шт.

6

335976A1

HOSE ASSY.

1шт.

8

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

Use Existing Hardware

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

10

892-11010

LOCK WASHER,M10

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

495-31025

WASHER,3/16"

1/4 x 9/16 x 3/64, Used With 358040A2

1шт.

All Models -JEE0126215

1шт.

13

492-11010

LOCK WASHER,#10

Used with 358040A2

1шт.

14

225-20210

NUT,#10-32, Brass

Used with 358040A2

1шт.

15

321446A1

SENSOR

Engine Temperature

1шт.

16

221-1693

TEE,Street, 1/2" NPT

1шт.

17

L127553

STUD

Special, Brass

1шт.

18

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

19

L127555

NUT,Hex, 3/8" - 16

3/8, Brass

1шт.

20

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

22

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

23

892-11012

LOCK WASHER,M12

1шт.

24

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

27

492-11044

LOCK WASHER,7/16"

1шт.

28

425-107

NUT,7/16"-14, G5

1шт.

29

S64612

BOOT

Rubber

1шт.

30

892-11004

LOCK WASHER,M4

1шт.

31

825-1404

NUT,M4, Cl 8

1шт.

32

L126713

BOOT

Plastic

1шт.

33

404222A1

ELECTRICAL WIRE

WIRE , Ground

1шт.

34

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

35

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 37
