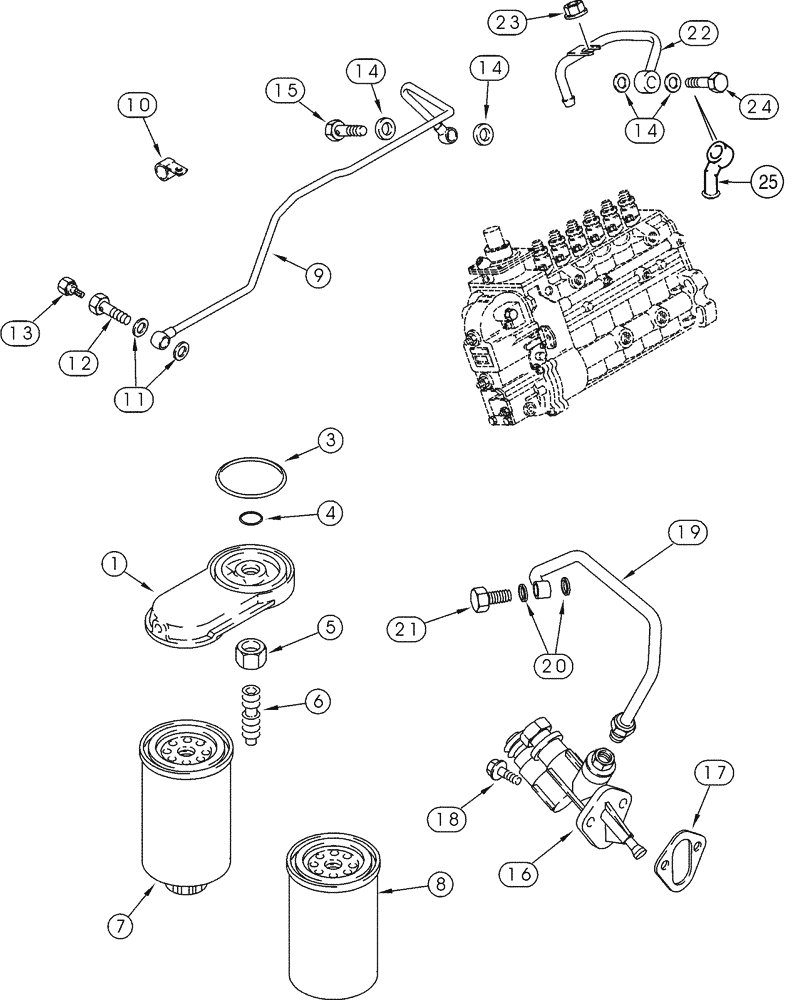

Запчасти Case 821C (03-14) - FUEL FILTER PUMP, TRANSFER (03) - FUEL SYSTEM

6T-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

European Models -JEE0126215

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2

1шт.

1

NLS

NO LONGER SERVICED

Replaces J897331

1шт.

1

84140384

FILTER HEAD

Replaces J936315

1шт.

3

84150002

SEALING RING

SEALRING 63..87mm Use with 84140384

1шт.

3

3936315

FILTER HEAD

65 mm Use with 84140384

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING 14 mm

1шт.

5

J903293

JAM NUT

M16

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

A77470

SEPARATOR

Incl. 7, 8

1шт.

7

J930942

SEPARATOR

1шт.

8

J931063

FUEL FILTER

1шт.

9

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

1шт.

10

J914711

CLIP

1шт.

11

J935171

SEALING WASHER

12 x 19 x 1,5 mm, Replaces J918191

2шт.

J905860

BANJO BOLT

Incl. 12, 13

1шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

13

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

4шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

16

87473339

FUEL PUMP

Replaces, J936316, J933252, 87648709

1шт.

17

J931059

GASKET

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

20

J935171

SEALING WASHER

12 x 19 x 1,5 mm, Replaces J918191

2шт.

21

J916361

BANJO BOLT

M12 x 24

1шт.

22

J928028

FUEL TUBE,8 mm OD x 228.7 mm L

-JEE0126215

1шт.

23

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

-JEE0126215

1шт.

24

J932096

VALVE

1шт.

25

J935740

BANJO BOLT

JEE0126216-

1шт.
