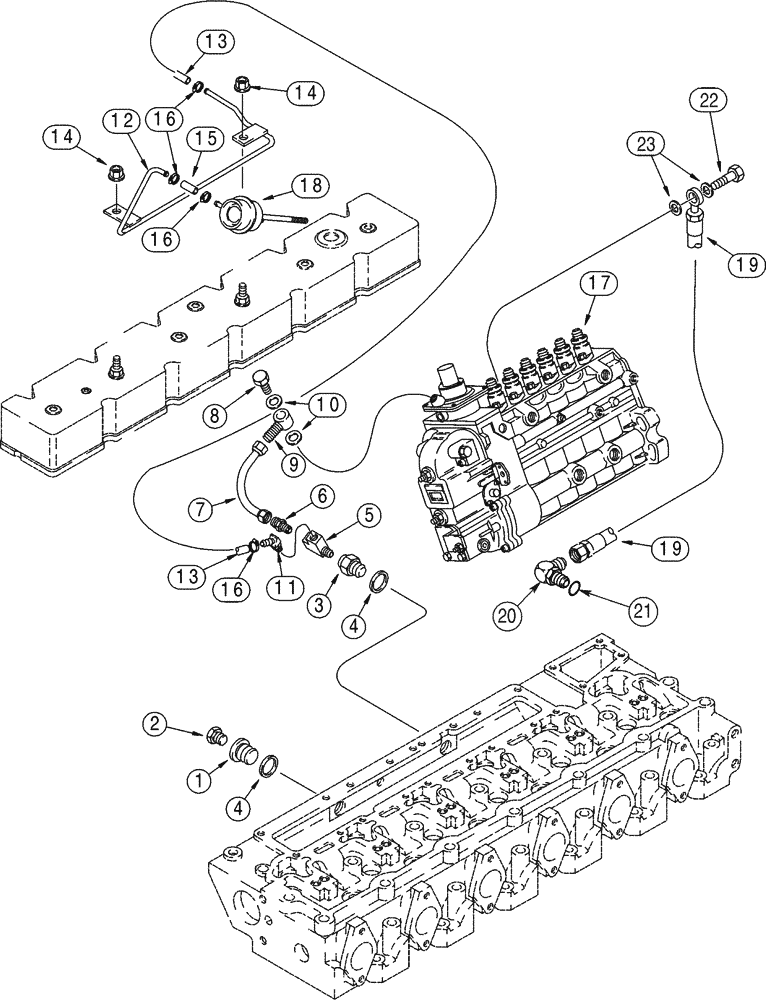

Запчасти Case 821C (03-13) - ANEROID AND WASTEGATE SYSTEM (03) - FUEL SYSTEM

*

6TAA-830 Emissions Certified Engine

1шт.

*

European Models JEE0126216-

1шт.

*

Models With Engine No. 376301A1

1шт.

1

J924148

PLUG,M22 x 1.5

M22

1шт.

2

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

J921594

PLUG

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

5

J930789

TEE

1шт.

6

222-21

FITTING,7/16"-24 x 1/8" NPTF

1шт.

7

J934608

TUBE,6.35 mm OD x 220 mm L

1шт.

8

J903035

BANJO BOLT

M12 x 24

1шт.

9

J919644

FITTING

1шт.

10

J935171

SEALING WASHER

12 x 19 x 1,5 mm

2шт.

11

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

12

J934473

TUBE,6.35 mm OD x 325.5, 133.4 mm L

1шт.

13

J991038

HOSE,6.35mm ID x 254mm L

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

15

J938056

HOSE,6.35 mm ID x 51.00 mm

1шт.

16

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

17

J938386

FUEL INJECTION PUMP

See Page(s) 3-19B

1шт.

17

JR938386

REMAN-INJECTION PUMP

1шт.

17

JC938386

CORE-INJECTION PUMP

Return Number

1шт.

18

J593678

ACTUATOR

See Page(s) 2-37F

1шт.

18

J593678R

REMAN-SOLENOID

Cummins - ACTUATOR - Wastegate

1шт.

18

J593678C

CORE-SOLENOID

Return Number, ACTUATOR

1шт.

19

J916779

FUEL HOSE,508.00 mm

1шт.

20

J945212

ELBOW

Includes 21, To Cylinder Block

1шт.

21

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

22

J918002

BANJO BOLT

1шт.

23

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 x 15,5 x 1 mm

2шт.
