Запчасти Case 821C (03-11) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

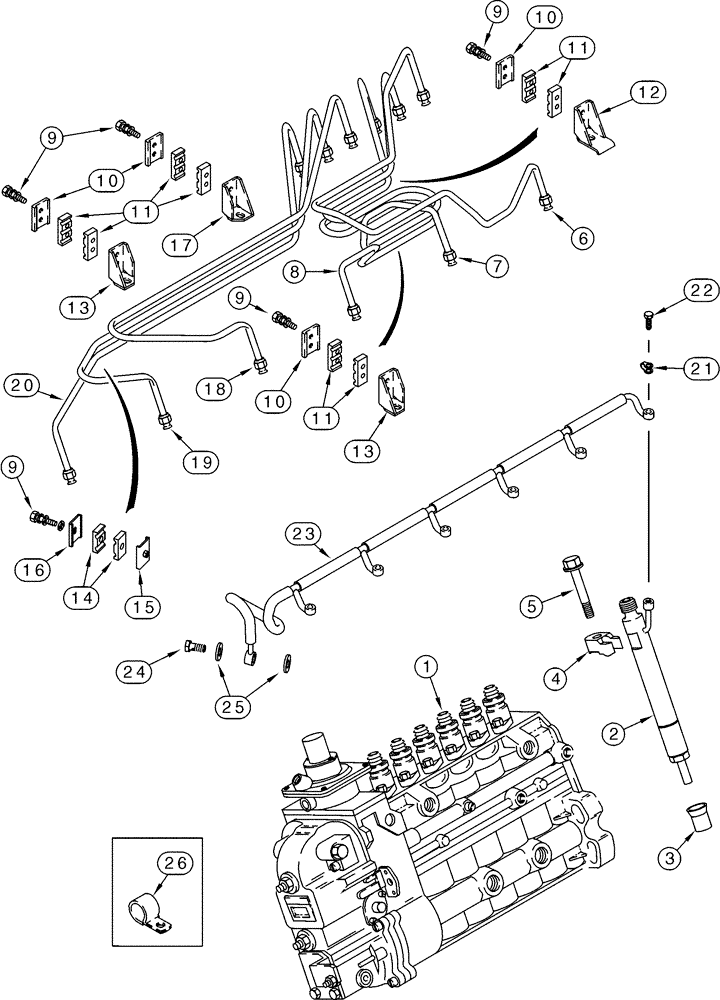

Схема запчастей Case 821C - (03-11) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM
18
20
21
13
17
11
2
16
1
5
8
14
4
12
9
3
10
15
6
10
9
10
26
13
22
23
9
24
11
25
19
7
9
11

Артикул

Название

Примечание

Количество

*

6TAA-830 Emissions Certified Engine

1шт.

*

European Models JEE0126216-

1шт.

*

Models With Engine No. 376301A1

1шт.

1

J938386

FUEL INJECTION PUMP

See Page(s) 3-19B

1шт.

1

JR938386

REMAN-INJECTION PUMP

1шт.

1

JC938386

CORE-INJECTION PUMP

Return Number

1шт.

2

J939837

INJECTOR ASSY.

Component Parts Not Serviced Separately

6шт.

2

JR939837

REMAN-FUEL INJECTOR

6шт.

2

JC939837

INJECTOR ASSY.

Return Number

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

4

J910279

CLAMP

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J930391

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 1

1шт.

7

J930392

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 2

1шт.

8

J930393

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 3

1шт.

9

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

9шт.

10

J904519

SUPPORT

4шт.

11

J917747

CLAMP

8шт.

12

J919622

BRACE

1шт.

13

J282942

BRACKET

2шт.

14

J917746

CLAMP

2шт.

15

J917717

BRACE

1шт.

16

CURJ904711

CLAMP

1шт.

17

J282942

BRACKET

1шт.

18

J930394

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 4

1шт.

19

J930395

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 5

1шт.

20

J930396

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 6

1шт.

21

J903380

SEAL

6шт.

22

J905307

BANJO BOLT,M6 x 1 x 14.30mm

7шт.

23

J920595

TUBE ASSY.

1шт.

24

J924726

BANJO BOLT

1шт.

25

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

2шт.
