Запчасти Case 821C (03-08) - FUEL TANK FILLER SENDER (03) - FUEL SYSTEM

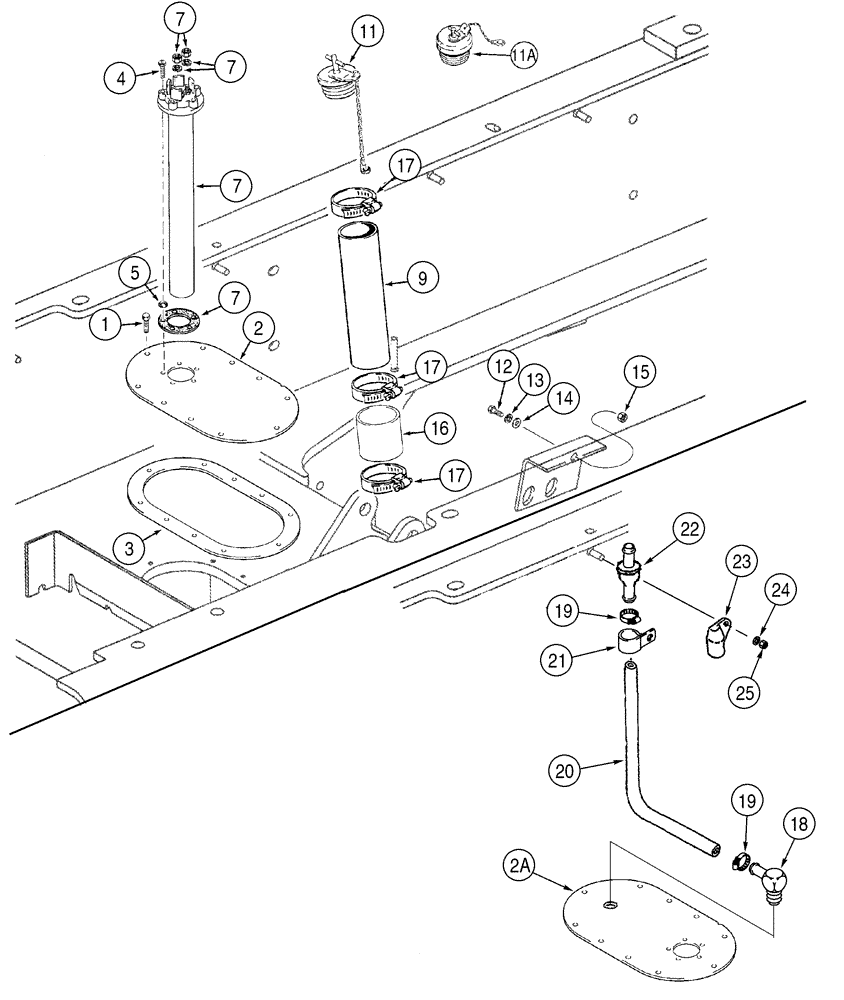

Схема запчастей Case 821C - (03-08) - FUEL TANK FILLER SENDER (03) - FUEL SYSTEM
11a
4
19
5
2a
20
13
17
25
17
22
7
9
7
15
16
21
1
19
7
12
3
14
18
17
24
2
11
23
7

Артикул

Название

Примечание

Количество

All Models -JEE0126215

1шт.

1

L108414

BOLT

10шт.

2

L125423

LARGE PLATE

PLATE, LARGE , Tank Access, If Used

1шт.

2a

349265A1

LARGE PLATE

PLATE, LARGE , Tank Access, If Used

1шт.

3

100734A1

GASKET,4.6mm Thk

1шт.

4

463-11020

SCREW,Hex Hd, #10-24 x 1 1/4"

5шт.

5

L115306

WASHER

Sealing

5шт.

7

328871A1

FUEL GAUGE

Fuel Level

1шт.

9

L127533

PIPE

Fuel Filler

1шт.

11

L74929

FILLER CAP

No Longer Available, Order 178592A1

1шт.

11a

178592A1

PLUG

Filler Cap, Replaces L74929

1шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

All Models -JEE0126215

1шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

16

L77270

HOSE,89.00 mm ID x 102.00 mm, SAE 30R2

102 mm (4 in)

1шт.

17

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

3шт.

18

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

19

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

20

31-2280

FUEL HOSE

1626 mm (64 in), Cut From 32-012

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Mounts to radiator shroud, Use existing hardware

1шт.

22

T103750

BREATHER

1шт.

23

186814A1

CAP

Mount To Radiator Guard

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

Выбрано товаров: 26
